Comments for wheel loader 930D

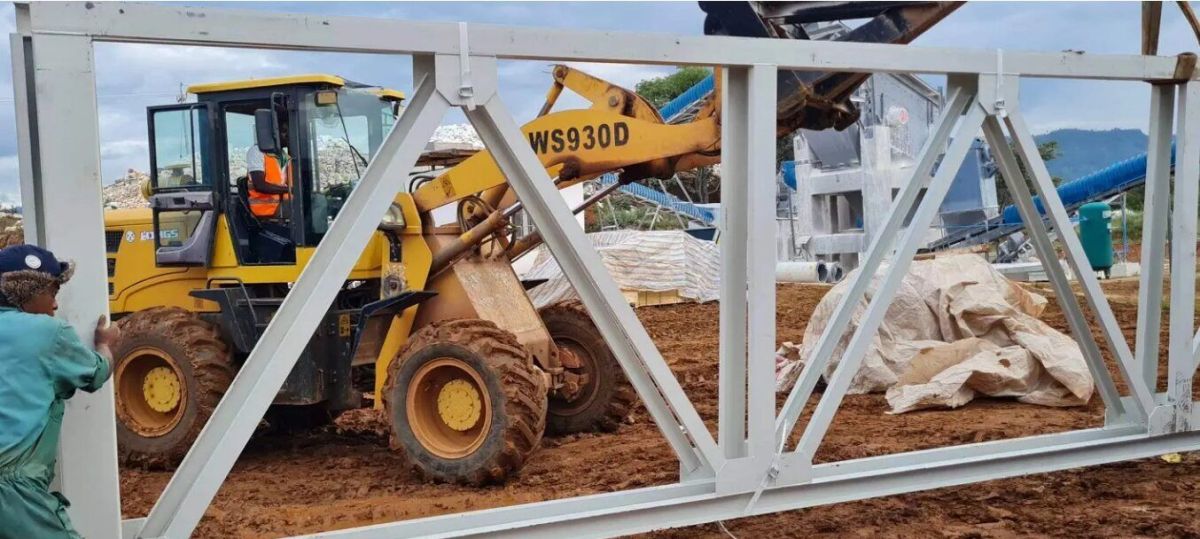

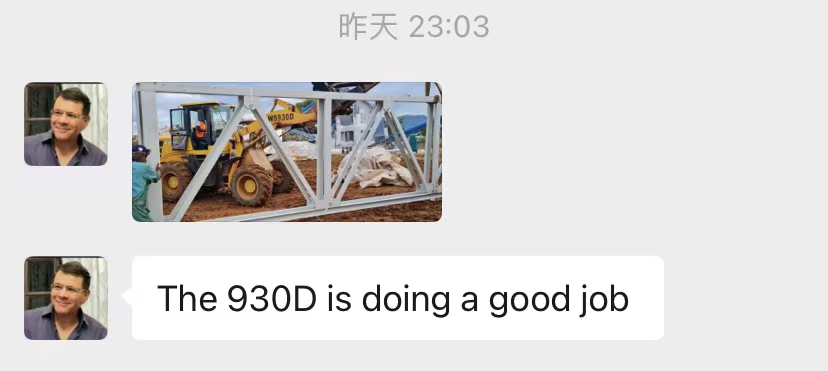

Below pictures come from one of our customers who has bought the wheel loader for 2 years. Hope it will help you to know more about our product quality.



1

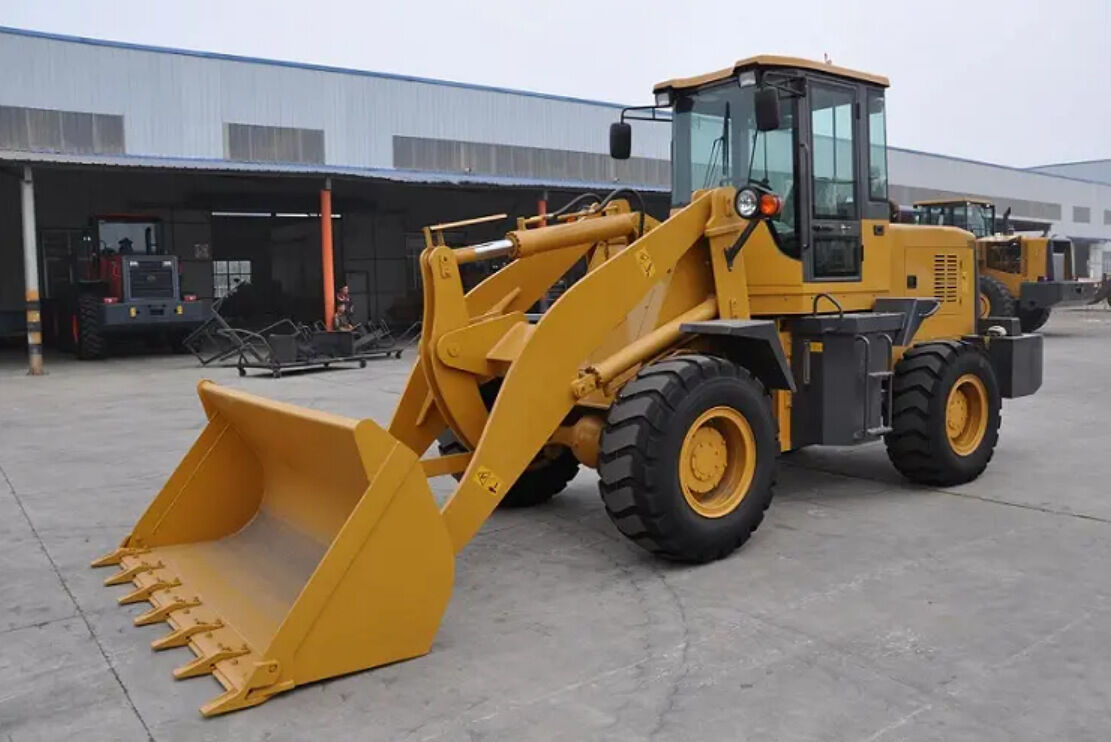

If you are interested in this machine and want to know more about it, please see the below detailed specification:


Performance

1

Rated load

2000kg

2

Overall weight

6720kg

3

Rated capacity

1.2m3

4

Max. Tractive force

63KN

5

Max. Breakout force

≥52KN

6

Max. Grade ability

25°

7

Max. Dumping height

3600mm

8

Max. Dumping reach

1020mm

9

Overall dimension L x W x H

6770x2205x2920mm

10

Min. Turning radius

4950mm

Engine

11

Model

YUNNEI 4102 DIESEL ENGINE

12

Type

Turbocharged & In-line

13

No. of cylinder

4

14

Rated power

70kw-2400r/min

15

Max. torque

300N.m

16

Min. Fuel-consume ratio

≤240g/kw.h

Transmission

17

Model

JINGYI ZL15FD-1 gearbox

18

Gear shift

2 forward, 2 reverse.

19

Max. speed

23km/h

Drive axle

20

Wheel base

2580mm

21

Wheel tread

1620mm

22

Min. ground clearance

300mm

Hydraulic system

23

System working pressure

16MPa

24

Boom lifting time

4.5+0.2s

25

Total time

7.6+0.5s

26

Fuel tank capacity

60L

Break system

27

Service brake

Air over hydraulic disc brake on 4 wheels

28

Parking brake

Flexible shaft control expand hoof type

Tyre

29

Type

16/70-20

30

Front tyre pressure

0.22Mpa

31

Rear tyre pressure

0.2Mpa








Comments for wheel loader 930D
Time : 2022-09-16
