The forklift mast is also called the lifting system which is one of the main parts of the forklift. Wings Brand mast using C-type and H-type steel shows high performance and stability. Today let Wings Machinery introduce it to you.
1.The types of the mast:
The mast can be divided into single stage, two stage, three stage according to the quantity of the steel your eyes see and the stage when the fork lifts to the top.

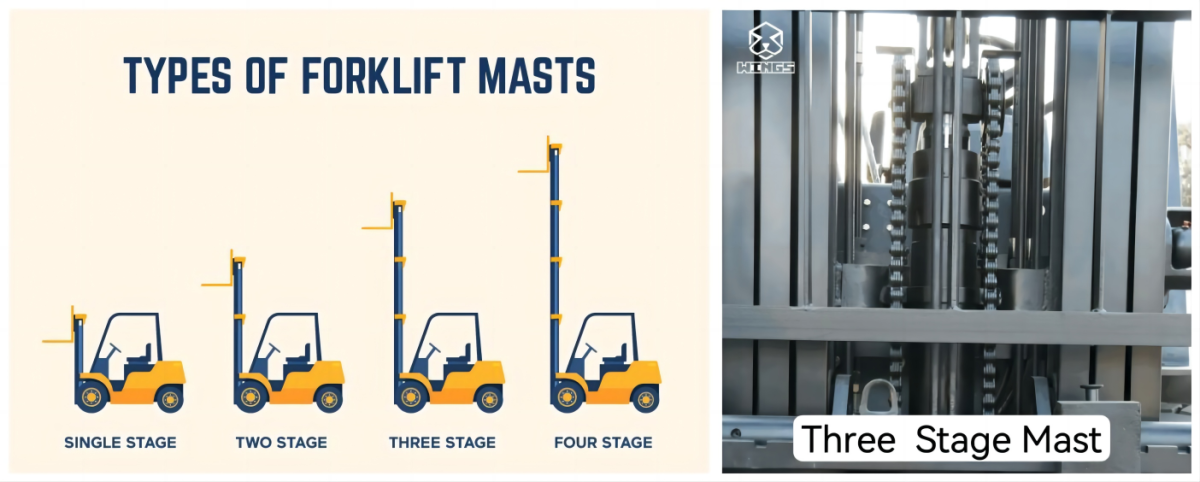

(The two pictures show the two ways to judge the types of the mast.)
2. The height range of the mast:
Single Stage: 1.34m-1.6m
Two Stage:1.76m-4.5m
Three Stage:4.5m-8m
The maximum height for Electric Reach Truck is 14 meters.
3. Full Free Lift Mast:
The standard configuration for Three Stage is Full Free Lift, while it’s optional for Two Stage.

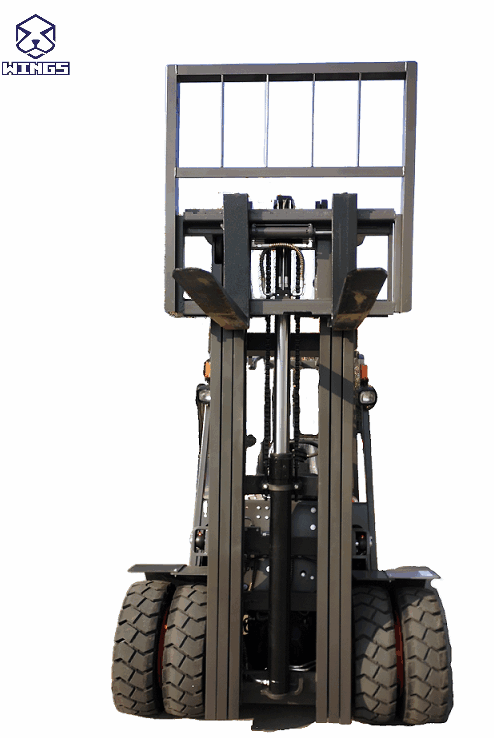

The above picture shows you the Full Free Lift Mast. The mast doesn’t stretch out of the top until the fork rises higher than a certain height. This distance of which the mast is still when the fork moves upside is called the Full Free Distance. Exceeding that distance, the mast will arise. The cylinder in the middle is called the Full Free Lift Cylinder. The forklift with a Full Free Lift Mast is very friendly to the places where the lifting height requirement is limited or the container.
The video shows the difference of the forklifts with or without the Full Free Lift.
This is Wings Machinery Sharing. Wings will always help you choose the right forklift.
