Nowadays, Wings company has been constantly innovating, and the attachments produced by Wings are becoming more and more popular. Wings attachments come in a wide variety of models and specifications, can be used on different forklifts to meet specific working conditions, and can be customized according to the specific requirements of the customers. The ordinary forklifts are thus transformed into multi-purpose, high-efficiency material handling tools with clamping, rotating, tilting, pushing, pulling, and side-shifting functions.

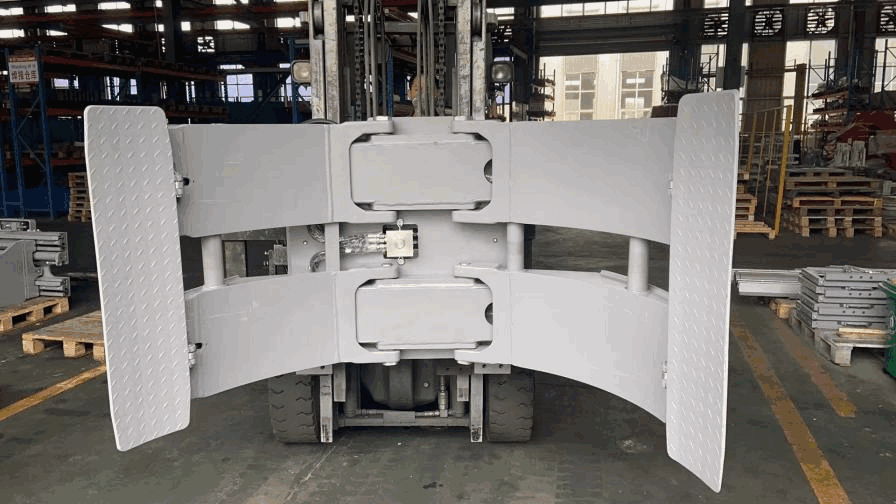

(Wings Paper Roll Clamp for sale)

Paper Roll Clamp attachments for forklift is one of the most popular attachment. Wings paper roll attachment has lots of varieties types and always pursues the high quality. It can easily handle bundles of paper rolls with forklifts, widely used for handling the round materials such as paper rolls, paper boxes, printed materials in the paper factory and so on.

This video shows how the forklift roll attachment work on the forklift.

ØApplication:

What we see in the video above is the Paper Roll Clamp attachment. It has other names which are Paper Reel Clamp, roll clamp attachment and so on. Whatever you call it, it can hold the bundles of paper rolls with one single arm open left or right. Open-close movement with double arms at the same time can also be chosen to accomplish the larger opening range or easier gripping. The optional 360°rotation can clamp the horizontal and vertical settled paper rolls and put them across or in an upright position. When the lower clamping hand is open, the mast should be raised at a certain height in case the clamping hand hits the ground, causing wear.

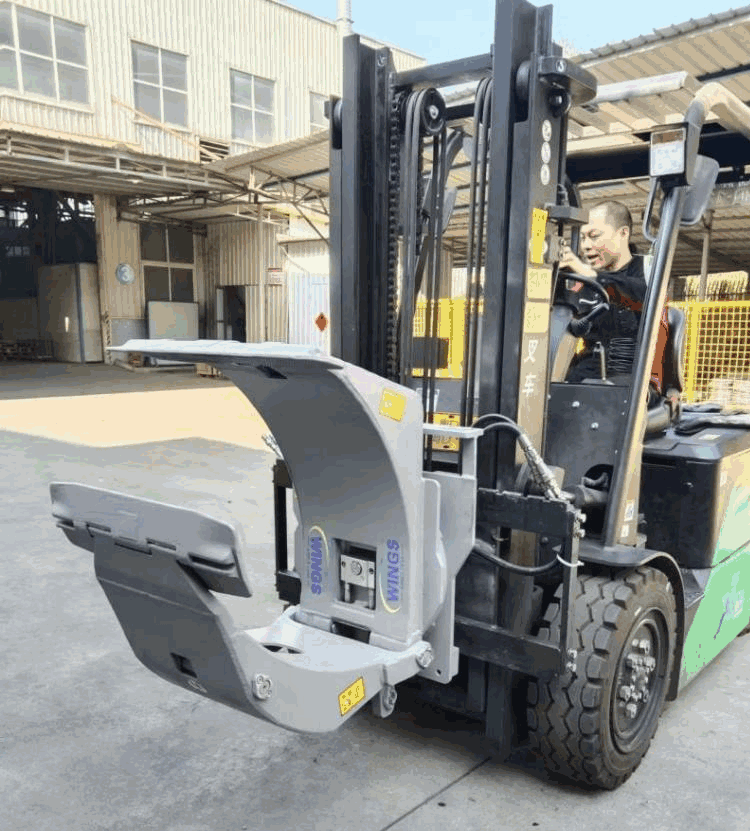

(The ground clearance should be enough when the lower clamping hand is open.)

To meet customers’ requirements, there can be more than one paper roll clamps on the same device. The clamping hands are not connecting so that they can decide their own opening angles according to the different diameters of the paper rolls. See the picture as follows:

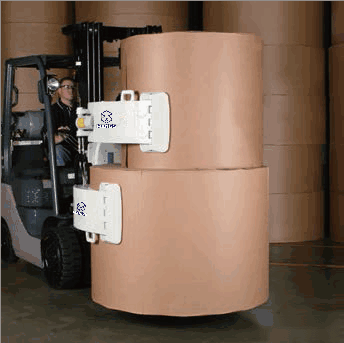

                                                               (More than one clamping hands on the roll clamp forklift for sale.)

ØThe factors of gripping perfectly:

The rough veins on the clamping hands increase strong friction to clamp the paper roll powerfully. But the vein is smooth and it can protect the paper. The inside pressure relief valve allows you to set the optimal clamping force. Neither too tight to hurt the paper roll nor too loose to make the roll down. Our salesmen usually advise for models after knowing the sizes of the customers’ paper rolls. The diameter and the weight of the paper roll are the necessary conditions.

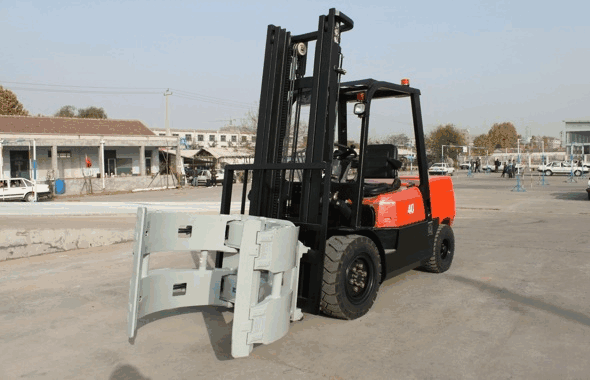

                                                                                                         （The rough friction faces on the clamping hands）

ØConfiguration and specification：

We have big and small models of paper roll clamp for sale. Generally speaking, one clamping arm is longer than the other. The capacity of the general model Paper Roll Clamp ranges from 2000kg to 4500kg. It allows the outside rollrange from 1300mm to 2200mm. For the small tons model which is only suitable for single clamping hand opening, the capacity is from 1200kg to 1300kg. The rollrange is from 1150mm to 1300mm.

Besides,Wings also work with Bolzoni paper roll clamp company and Cascade paper roll clamp company, which can keep our roll clamp attachments’ design technology to be more advanced.

Wings company produces a large variety of forklift attachments, which will expand its influence in the field of forklifts. and make greater contributions to narrowing the gap between China and the world’s advanced material handling level and the development of the global material handling field.
