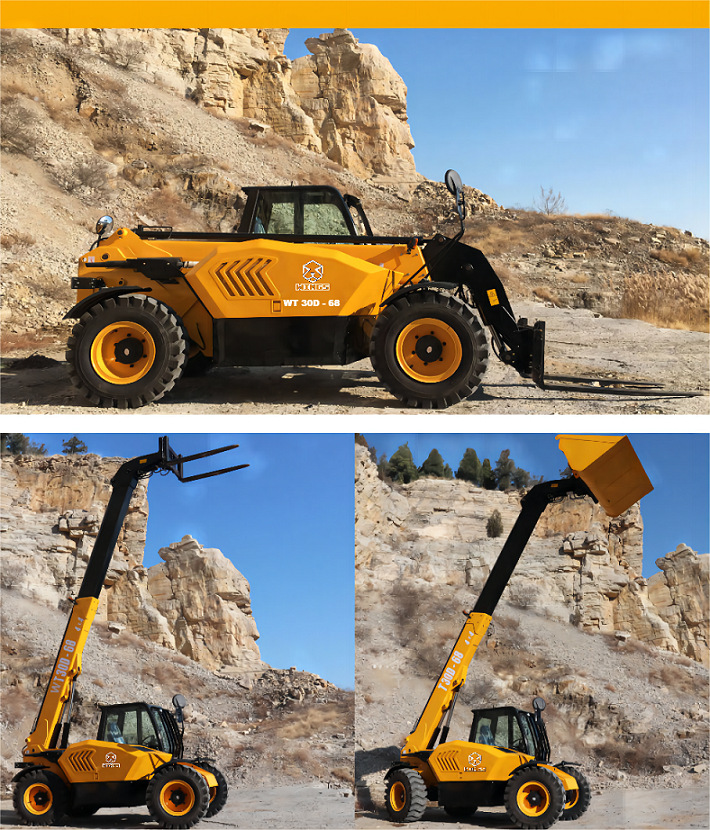

Wings Brand Telescopic Forklift

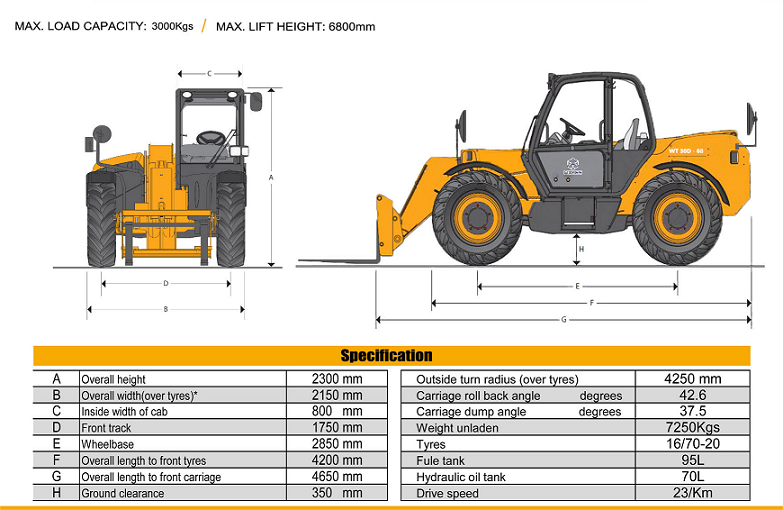

Max Load capacity: 3000 kgs / Max Lifting Height: 6800 mm
1. The engine
Latest technology and advanced design provides low fuel consumption, reduced noise, high torque and power output. total reliability and minimal maintenance, dry type air filter with primary and safety elements, territory dependent.
2. The transmission
Power shift transmission incorporating torque converter and two speed power shift gear box in one mounted unit.
A combined steering column mounted switch incorporating directional control and 2 forward and 2 reverse power shift gears.
Front and rear drive axles: Epicyclic hub reduction drive/steer axles with torque proportioning differentials permanent 4 wheel drive.
3. The brake
Service brake: Air pressure activated, drum brakes.
Parking brake: Hand operated disc brake on output of gear box.
4. The boom and carriage
Boom is manufactured from high tensile steel.
Low maintenance, UHMWPE hard wearing pads.
Self-levelling carriage with hydraulic pin locking quick hitch, accepts pallet forks and a wide range of attachments. One boom end auxiliary hydraulic service fitted as standard.
5. The safety check valves
Fitted to carriage tilt cylinder, telescopic cylinder and boom lift cylinder.

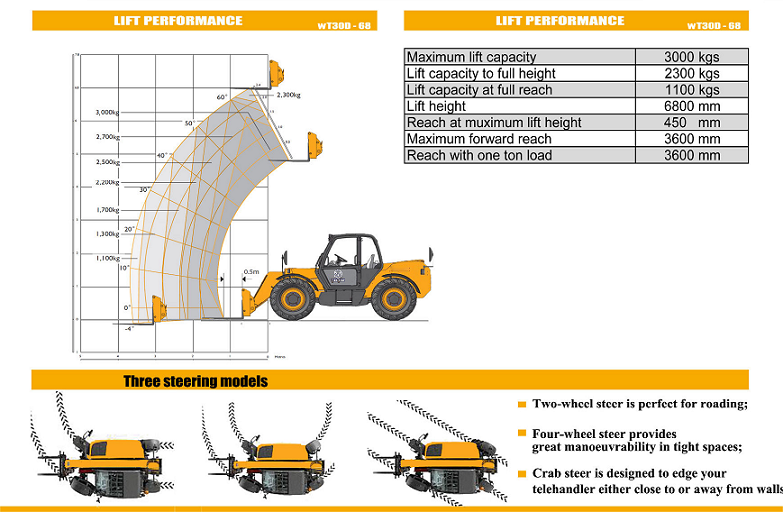

6. The steering
Hydraulic Cylinder power steering on both axles
Three steer model options: front wheel steer; All wheel steer; crab steer.
All operated from in the cab by a selection switch.
7. The cabin
Quiet safe and comfortable cab(Standard engine in idling) with ≤ 72 dBA. Tinted glass all round.
Front windows and sky light FOPS.
Over weight warning system, hour meter, engine and oil temperature, gear indicator, fuel gauge.Hydraulic joystick, quick hitch button, adjustable deluxe seat. Adjustable steer column with stalk power shift changed forward reverse shuttle.
8.The attachments
A big range of attachment fit telehandler quick hitch. Bucket size from 0.8 meter width to 2.2 meter. The log fork, grass fork, mix bucket in same option.
For more information, please feel free to contact us.
