CPCD100G
Rated Capacity: 10 ton
Lifting Height: 3m
Power: Diesel
Engine Power: 85KW

  • Features


    Security

    • Intelligent starting system, forklift hanging gear start prevent function,it improves the operation safety and longer gearbox service life.

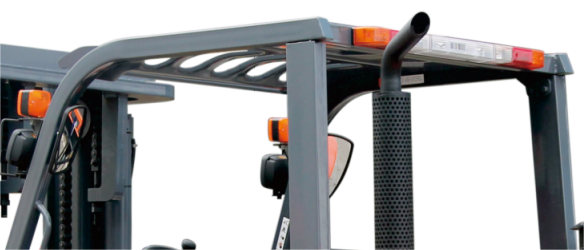

    • Overhead guard with high-strength steel plate one stamping, provide driver more sophisticated security.



    Reliability

    • Cooling system meet the requirements of the China Ⅲ standard.The inter-cooling, scattered water, oil scattered are independent layout, which greatly increase the engine, gearbox and other core components quality.

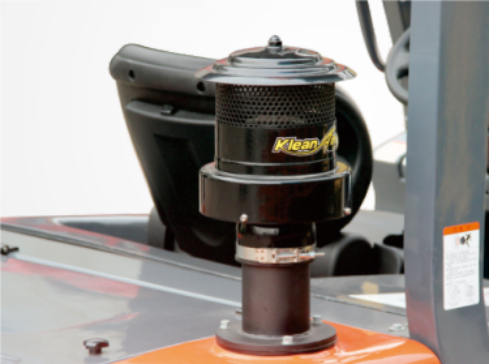

    • Engine standard with two-stage filter design (cyclone type filter+air dry filter).




    Advancement

    • World famous imported diesel and gasoline engine, Japan Okamura gear box and wet drive axle for options.

    • Intelligent LCD instrument, CAN,Controller Area Network, real-time display of engine and forklift's working information.


  • Specification
    CPCD100G Diesel Forklift
    Power Type
    		Diesel
    Rated Capacitykg10000
    Load Centremm600
    Service WeightKg13100
    Tyre&Chassis
     Type(Front/Rear)
    		Pneumatic Tire
    Wheel number X = drive wheel (Front/Rear)
    		4X/2
    Tyre Size (Front)
    		9.00-20-14PR
    Tyre Size (Rear)
    		9.00-20-14PR
    Front Treadmm1600
    Rear Treadmm1700
    Wheelbasemm2800
    Size
    Fork Size(L×W×T)mm1520×175×85
    Mast Tilt Angle (F/R)deg6/12
    Lift Heightmm3000
    Mast Lowered Heightmm2830
    Free Lift Heightmm215
    Mast Extended Heightmm4335
    Length to Face of Forkmm4280
    Overall Widthmm2170
    Overhead Guard Heightmm2510
    Front Overhangmm739
    Rear Overhangmm725
    Turning Radius (outside)mm3970
    Ground Clearance (Bottom of mast)mm230
    Min.intersecting aislemm3590
    Min.right angle stacking aisle widthmm6100
    Performance
    Max.Travel Speed (Full load/No load)Km/h26/30
    Lifting Speed (Full load/No load)mm/s270/330
    Lowering Speed (Full load/No load)mm/s≤600/≥300
    Max.Gradeability (Full load)%20
    Power & Transmissions
    Engine Model
    		Xichai6110
    Powerkw/rmp85/2000
    Rated torque/r.p.mnm/rmp460/1400-1500
    No.of Cylinder
    		4
    Bore x Strokemm110×125
    DisplacementL4.75
    Emission Standards
    		国Ⅲ
    Fuel Tank CapacityL135
    Battery (Voltage/Capacity )V/Ah2×12/80
    Transmission Type
    		Hydraulic
    Stage FWD/RVS
    		2/2 Power shift
    Operating PressureMpa19
