CPCD120G
Rated Capacity: 12 ton
Lifting Height: 3m
Power: Diesel
Engine Power: 110KW

  • Features


    Security

    • Intelligent starting system, forklift hanging gear start prevent function,it improves the operation safety and longer gearbox service life.

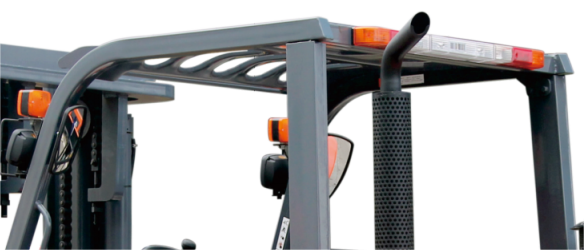

    • Overhead guard with high-strength steel plate one stamping, provide driver more sophisticated security.



    Reliability

    • Cooling system meet the requirements of the China Ⅲ standard.The inter-cooling, scattered water, oil scattered are independent layout, which greatly increase the engine, gearbox and other core components quality.

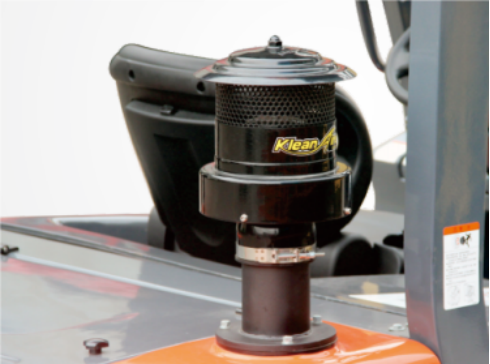

    • Engine standard with two-stage filter design (cyclone type filter+air dry filter).




    Advancement

    • World famous imported diesel and gasoline engine, Japan Okamura gear box and wet drive axle for options.

    • Intelligent LCD instrument, CAN,Controller Area Network, real-time display of engine and forklift's working information.

  • Specification
    CPCD120G Diesel Forklift
    Power Type
    		Diesel
    Rated Capacitykg12000
    Load Centremm600
    Service WeightKg14500
    Tyre&Chassis
     Type(Front/Rear)
    		Pneumatic Tire
    Wheel number X = drive wheel (Front/Rear)
    		4X/2
    Tyre Size (Front)
    		11.00-20-16PR
    Tyre Size (Rear)
    		9.00-20
    Front Treadmm1600
    Rear Treadmm1700
    Wheelbasemm3200
    Size
    Fork Size(L×W×T)mm1520×175×95
    Mast Tilt Angle (F/R)deg6/12
    Lift Heightmm3000
    Mast Lowered Heightmm3145
    Free Lift Heightmm95
    Mast Extended Heightmm4640
    Length to Face of Forkmm4685
    Overall Widthmm2200
    Overhead Guard Heightmm2540
    Front Overhangmm769
    Rear Overhangmm730
    Turning Radius (outside)mm4700
    Ground Clearance (Bottom of mast)mm230
    Min.intersecting aislemm4200
    Min.right angle stacking aisle widthmm7190
    Performance
    Max.Travel Speed (Full load/No load)Km/h28/30
    Lifting Speed (Full load/No load)mm/s270/350
    Lowering Speed (Full load/No load)mm/s≤600/≥300
    Max.Gradeability (Full load)%20
    Power & Transmissions
    Engine Model
    		YuChai6J150-T301
    Powerkw/rmp110/2200
    Rated torque/r.p.mnm/rmp600/1600-1800
    No.of Cylinder
    		6
    Bore x Strokemm105×125
    DisplacementL6.494
    Emission Standards
    		国Ⅲ
    Fuel Tank CapacityL150
    Battery (Voltage/Capacity )V/Ah2×12/80
    Transmission Type
    		Hydraulic
    Stage FWD/RVS
    		2/2 Power shift
    Operating PressureMpa19
