CPCD180G
Rated Capacity: 18 ton
Lifting Height: 4m
Power: Diesel
Load Center：900mm

  • Features


    Security

    • Standard equipped OPS Operator sensor system to prevent the operation accident results from the wrong operation position of the driver.

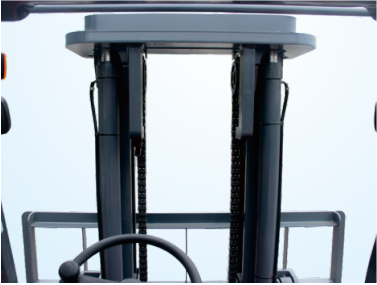

    • The optimization design full vision mast with external pipeline layout provides the best vision for the driver which improves the safety of the driving and operation.




    Reliability

    • The engine intake system adopts the external prefilter and internal double filter element dry filter filting system has a filting efficiency of 99.9% which improves the cleaness of the intaking air to extend the engine life.




    Advancement

    • World famous imported diesel engines, German ZF transmission,German Kessler wet brake drive axle for options.

    • Load sensing priority steering hydraulic system, double pump flow fuel feeding design improves the mast working efficiency and energy saving.



  • Specification
    CPCD180G Diesel Forklift
    Power Type
    		Diesel
    Rated Capacitykg18000
    Load Centremm900
    Service WeightKg23800
    Tyre&Chassis
     Type(Front/Rear)
    		Pneumatic Tire
    Wheel number X = drive wheel (Front/Rear)
    		4X/2
    Tyre Size (Front)
    		12.00-24-24PR
    Tyre Size (Rear)
    		12.00-20-20PR
    Front Treadmm1926
    Rear Treadmm2002
    Wheelbasemm3600
    Size
    Fork Size(L×W×T)mm1820×250×110
    Mast Tilt Angle (F/R)deg6/12
    Lift Heightmm4000
    Mast Lowered Heightmm3660
    Mast Extended Heightmm5655
    Length to Face of Forkmm5430
    Overall Widthmm2610
    Overhead Guard Heightmm3020
    Front Overhangmm920
    Rear Overhangmm930
    Turning Radius (outside)mm5300
    Ground Clearance (Bottom of mast)mm250
    Min.intersecting aislemm5300
    Min.right angle stacking aisle widthmm8200
    Performance
    Max.Travel Speed (Full load/No load)Km/hI file 17/22 ,II file 27/37
    Lifting Speed (Full load/No load)mm/s270/400
    Lowering Speed (Full load/No load)mm/s≤600/≥300
    Max.Gradeability (Full load)%20
    Power & Transmissions
    Engine Model
    		WechaiWP6
    Powerkw/rmp140/2200
    Rated torque/r.p.mnm/rmp750/1500
    No.of Cylinder
    		6
    Bore x Strokemm105×130
    DisplacementL6.75
    Emission Standards
    		国Ⅲ
    Fuel Tank CapacityL350
    Battery (Voltage/Capacity )V/Ah24/240
    Transmission Type
    		Hydraulic
    Stage FWD/RVS
    		2/1 Power shift
    Operating PressureMpa18.5
