CPCD280G
Rated Capacity: 28 ton
Lifting Height: 4m
Power: Diesel
Load Center:1200mm

  • Features


    Security

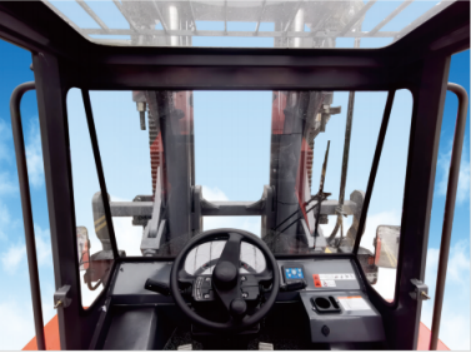

    • The optimization design full vision mast with external pipeline layout provides the best vision for the driver which improves the safety of the driving and operation.




    • Multi-step and anti-skid boarding pedal, strong and beautiful handrails on the car, getting on and off the car is safer and more convenient.




    Reliability

    • Electric one button parking brake, hydraulic power drive, separate design between the parking brake and the driving brake provides a more reliable and safety parking brake.

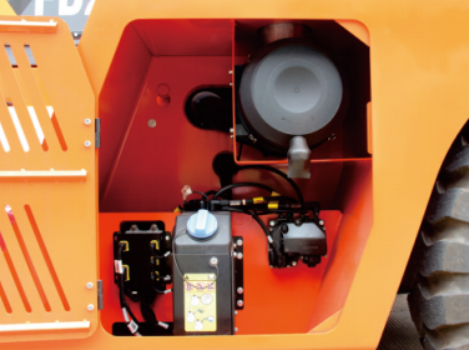

    • Advanced hydraulic components,high reliability and comfort,which improved vehicle efficiency.


    Advancement

    • Multichannel image system is an option to improve the operation safety.

    • Load sensing priority steering hydraulic system, double pump flow fuel feeding design improves the mast working efficiency and energy saving.





  • Specification
    CPCD280G Diesel Forklift
    Power Type
    		Diesel
    Rated Capacitykg28000
    Load Centremm1200
    Service WeightKg36900
    Tyre&Chassis
     Type(Front/Rear)
    		Pneumatic Tire
    Wheel number X = drive wheel (Front/Rear)
    		4X/2
    Tyre Size (Front)
    		14.00-24-28PR
    Tyre Size (Rear)
    		14.00-24-28PR
    Front Treadmm2200
    Rear Treadmm2510
    Wheelbasemm4650
    Size
    Fork Size(L×W×T)mm2400×230×110
    Mast Tilt Angle (F/R)deg5/10
    Lift Heightmm4000
    Mast Lowered Heightmm4000
    Mast Extended Heightmm5995
    Fork Adjust Distancemm86-2720
    Length to Face of Forkmm6700
    Overall Widthmm3050
    Overhead Guard Heightmm3440
    Front Overhangmm1085
    Rear Overhangmm955
    Turning Radius (outside)mm6475
    Ground Clearance (Bottom of mast)mm310
    Min.intersecting aislemm6475
    Min.right angle stacking aisle widthmm10500
    Performance
    Max.Travel Speed (Full load/No load)Km/hI file 22/24
    Lifting Speed (Full load/No load)mm/s300/320
    Lowering Speed (Full load/No load)mm/s≤600/≥300
    Max.Gradeability (Full load)%20
    Power & Transmissions
    Engine Model
    		VOLVO TAD871VE
    Powerkw/rmp185/2200
    Rated torque/r.p.mnm/rmp1160/1200
    No.of Cylinder
    		6
    Bore x Strokemm110×135
    DisplacementL7.7
    Emission Standards
    		欧Ⅳ/Tire4F
    Fuel Tank CapacityL400
    Battery (Voltage/Capacity )V/Ah24/240
    Transmission Type
    		Hydraulic
    Stage FWD/RVS
    		3/3 Power shift
    Operating PressureMpa22
