CPQD25FR
Rated Capacity: 2.5 ton
Lifting Height : 3m
Power: Gasoline&LPG
Engine Power: 31.2/37.4/41/41KW

  • Features:

    1.LPG and gasoline as fuel, more environmental

    2.Seat with safety belt and steady bar

    3.Low center of gravity, small turning radius, more stable and reliable

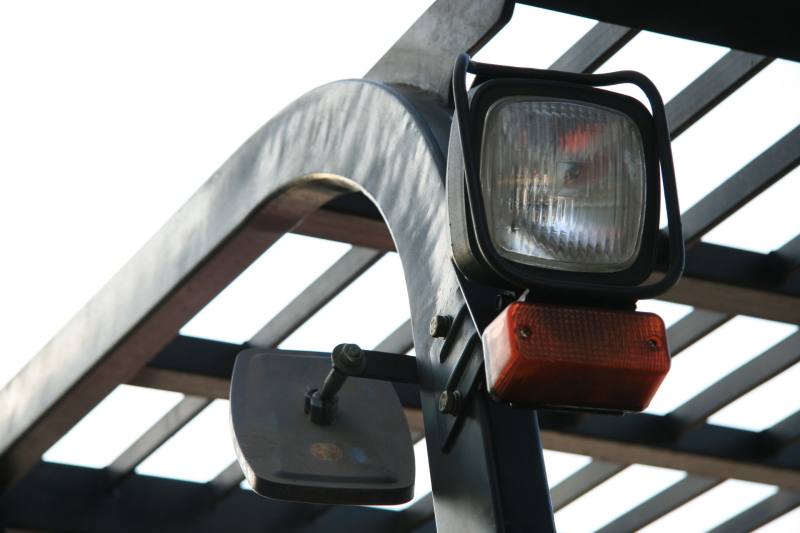

    4.Safe overhead guard

    5.Hydraulic gear-box and hydraulic steering

    6.Dual air filter

    7.Streamline balance weight

    8.For LPG/Gasoline forklift, you can choose Chinese engine, Nissan K25 engine and Mitsubishi4G64 engine

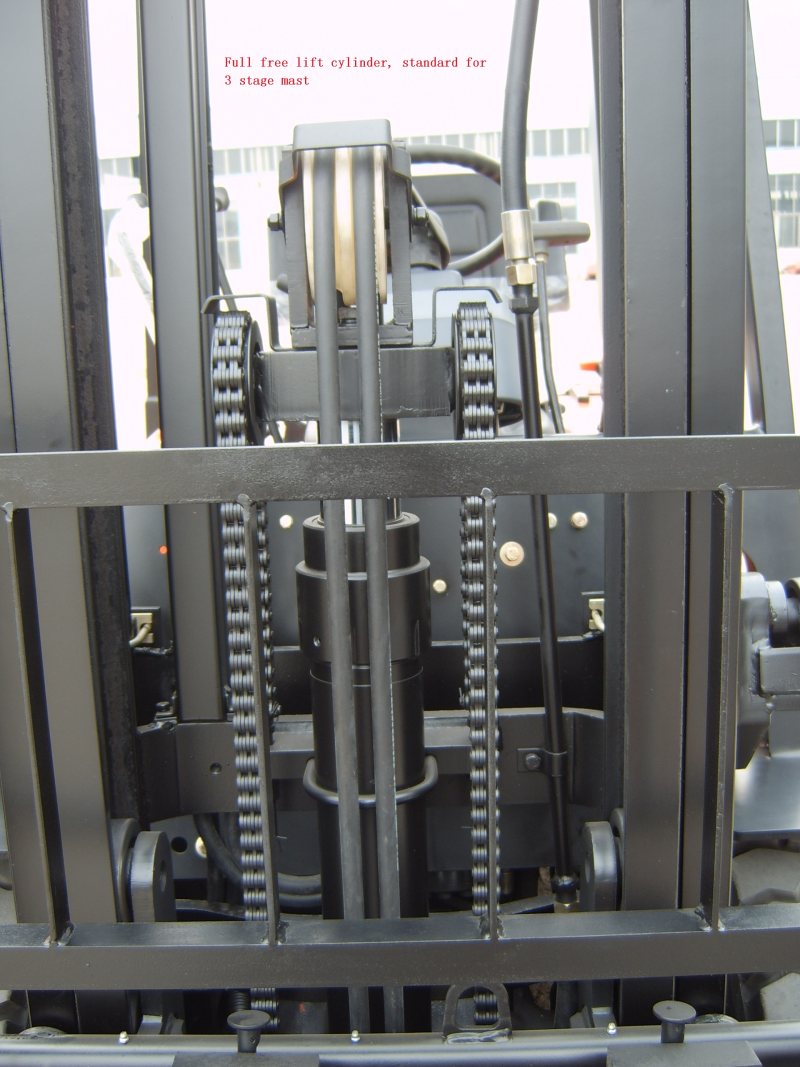

    9.Optional mast:2-stage3.3m/3.5m/4m mast;3-stage 4.5m/5m/5.5m/6m/7.3m mast.




  • Specification

    CPQD25FR Gasoline&LPG Forklift
    Rated capacitykg2500
    Load centermm500
    Power type
    		Gasoline/LPG
    Transmission
    		Hydraulic
    Dimensions
    Lifting heightmm3000
    Free lifting heightmm60
    Turning radiusmm2450
    Overall lengthmm3605
    Overall widthmm1160
    Overall height (mast lowered)mm2095
    Overall height(mast raised)mm4080
    Overall height (overhead guard)mm2095
    Fork lengthmm1070
    Fork widthmm122
    Fork thicknessmm40
    Performance
    Max. driving speed (with/without load)km/h17/19
    Max. lifting speed (with load)mm/s400
    Max. traction (with/without load)kn15/10
    Grade ability (with/without load)%15/20
    Tilting angles (forward/backward)°6/12
    Service weightkg3600
    Engine
    Engine model
    		K21/K25/Chinese GQ4Y/Chinese BY491GP
    Powerkw31.2/37.4/41/41
    Rated speedrpm2250/2300/2800/2800
    DisplacementL2.237
    No. of cylinder
    		4
    Wheel
    Front overhangmm451
    Wheel basemm1640
    Front treadmm970
    Rear treadmm970
    Front tire
    		7.00-12
    Rear tire
    		6.00-9
