XCMG LW300FN

Rated load: 3000kg
Bucket capacity: 1.5~2.5m³
weight: 10600±200kg

Feature:
1.It features high efficiency, energy-saving, and strong power.
2.The three-element torque converter and the fixed shaft power shift transmission feature
3.high maturity and reliability.
4.The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.
5.The bucket is made of high strength material to realize high wear and impact resistance.
6.The diversified configurations and complete attachments adapt to the construction needs in different regions and under different working conditions.
7.The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.
8.Outstanding capability, with traction at ≥9t and breakout force at ≥13t.
9.High adaptability, with turning radius at 5,165mm (tire center).

Specification:

Item		Unit	Specification
Rated operating load		kg	3000
Bucket capacity		m³	1.5~2.5
Machine weight		kg	10600±200
Dump clearance at maximum lift		mm	2770~3260
Reach at maximum lift		mm	1010~1210
Wheel base		mm	2600
Tread		mm	1850
Height of hinge at maximum lift height		mm	3830
Working height(fully lifted)		mm	4870
Max.breakout force		kN	130
Max.horse power		kN	95
Hydraulic cycle time-raise		s	5.5
Total hydraulic cycle time		s	10
Min. turning radius over tyres		mm	5165
Articulation angle		°	35±1
Gradeability		°	28
Tyre size			17.5-25-12PR
Overall machine dimension L×W×H			7050×2482×3118

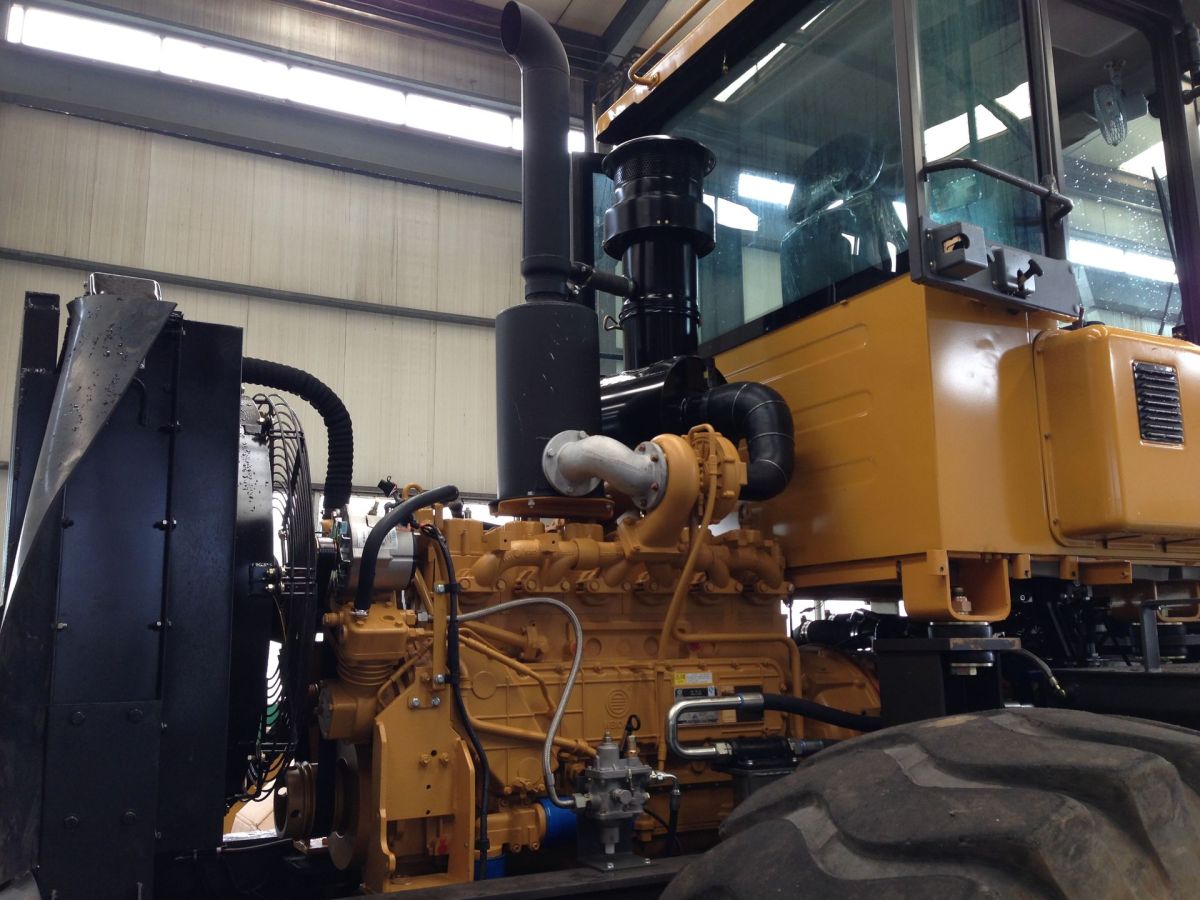

Model			WP6G125E22
Emission standards			Emission 2
Rated Power/Speed		kW/rpm	92/2300
Fuel Tank		L	170
Hydraulic Tank		L	170
Travel speed	Ⅰ-gear(F/R)	km/h	8/10
	Ⅱ-gear(F/R)	km/h	13/30
	Ⅲ-gear(F)	km/h	24/-
	Ⅳ-gear(F)	km/h	40/-
