CPCD50FR
Rated Capacity: 5 ton
Lifting Height: 3m
Power: Diesel
Engine Power: 59KW

  • Features:

    1.The famous transmission box and drive axle with more than 15 yeas market verification are stable and reliable.

    2.Equipped with load sensing and dual pump confluence hydraulic system technology not only improves working efficiency but also effectively reduces truck energy consumption.

    3.Wings Diesel forklifts are all with reliable power accessories. All accessories like engine, gear box are support by domestic and world famous brand, high quality, reliable after-sales.

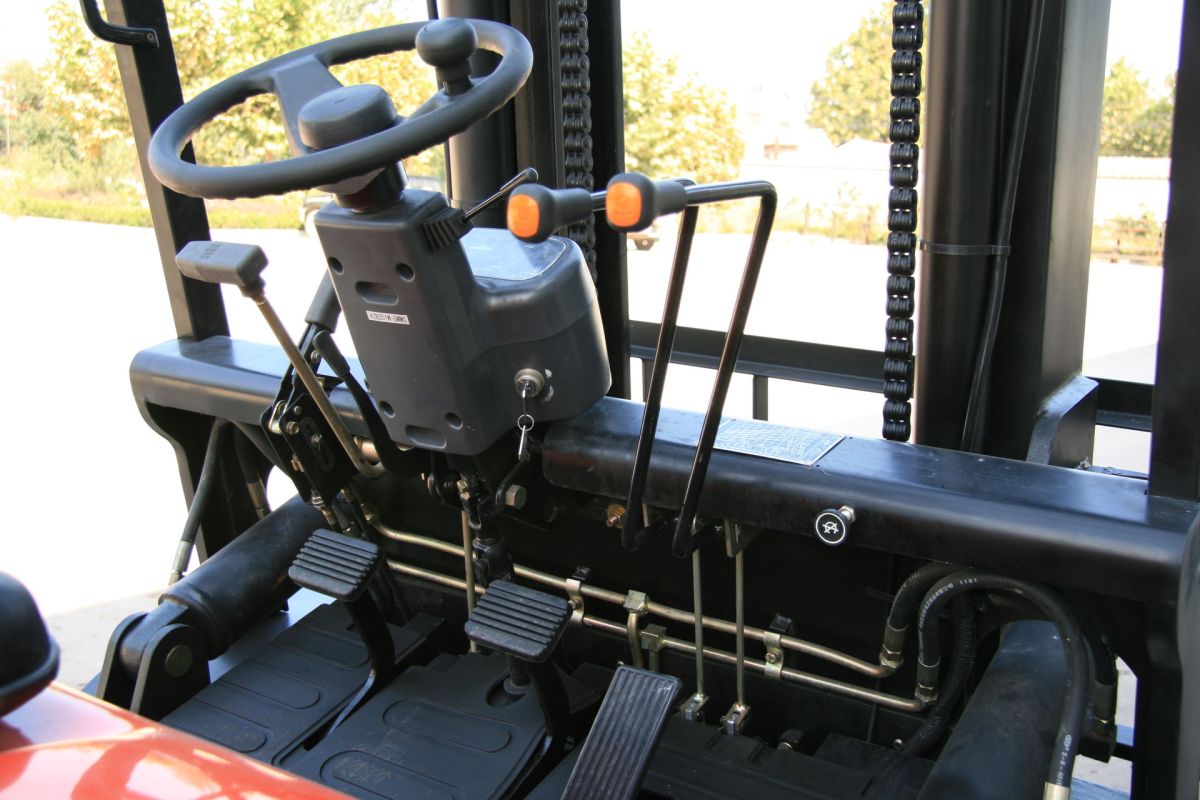

    4. Wings brand 5-7 ton forklift’s Steering system offers easy operation, flexible and reliable steering

    5. Half shaft sealing technology on drive axle end improves sealing reliability and reduces after-sale service co

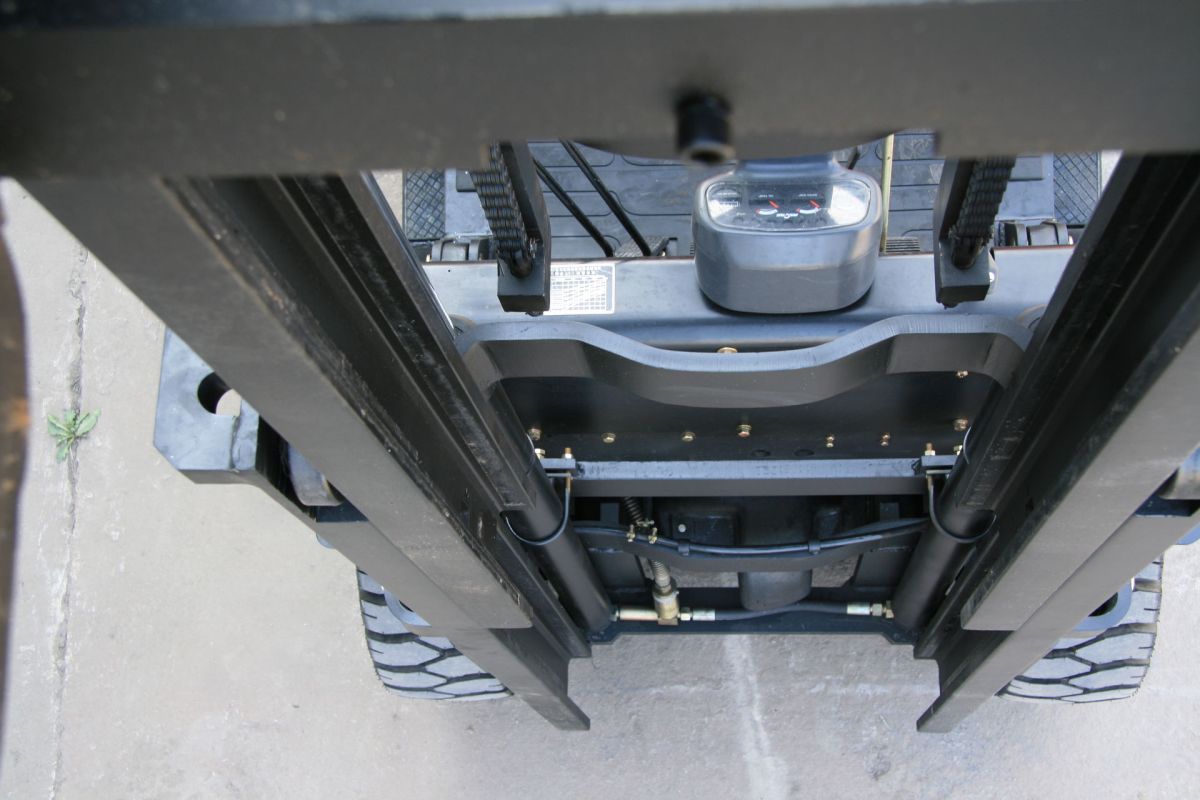

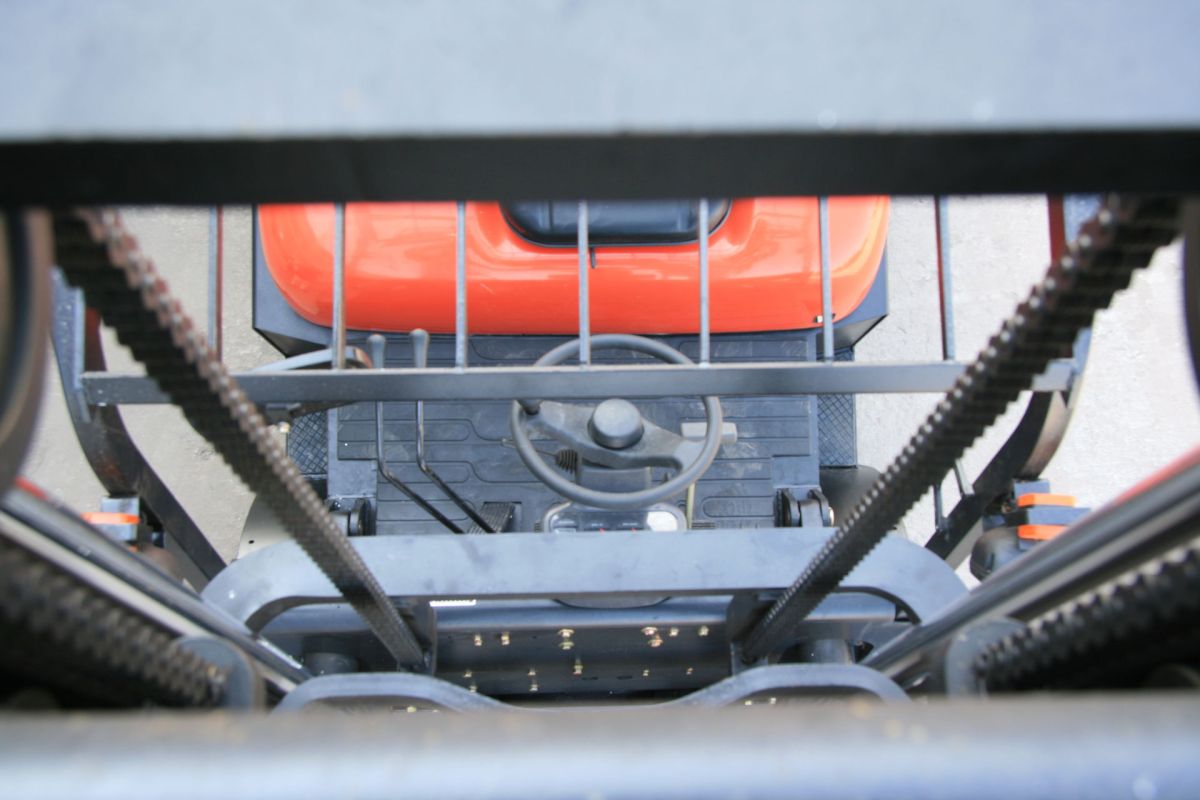

    6.Wide view lifting system and wide-angle rear view mirror improves vision.



    Applications:

    As lifting and transporting machineries, Wings FR Series 5T-7T-8T Diesel / Gasoline / LPG IC Counterbalanced Forklift Trucks are widely used for loading, unloading and transporting the packaged goods in factories, warehouses, stations, wharves, ports and so on. The fork lift truck can also be used for bulk goods and unpacked good loading, unloading and handing after assembled with other attachments.


  • Specification

    CPCD50FR Diesel Forklift
    Rated capacitykg5000
    Load centermm500
    Power type
    		Diesel
    Transmission
    		Hydraulic/Mechanical
    Dimensions
    Lifting heightmm3000
    Free lifting heightmm150
    Turning radiusmm3000
    Overall lengthmm4350
    Overall widthmm1400
    Overall height (mast lowered)mm2330
    Overall height (mast raised)mm4265
    Overall height (overhead guard)mm2330
    Fork lengthmm1220
    Fork widthmm150
    Fork thicknessmm55
    Performance
    Max. driving speed (with/without load)km/h20/24
    Max. lifting speed (with load)mm/s375
    Max. traction (with/without load)KN31/18
    Grade ability (with/without load)%15/20
    Tilting angles (forward/backward)°6/12
    Service weightkg6800
    Engine
    Engine model
    		LR4A3/4JR3
    Powerkw59
    Rated speedrpm2400 /2200
    DisplacementL4.3
    No. of cylinder
    		4
    Wheel
    Front overhangmm585
    Wheel basemm2150
    Front treadmm1180
    Rear treadmm1190
    Front tire
    		300-15
    Rear tire
    		7.00-12

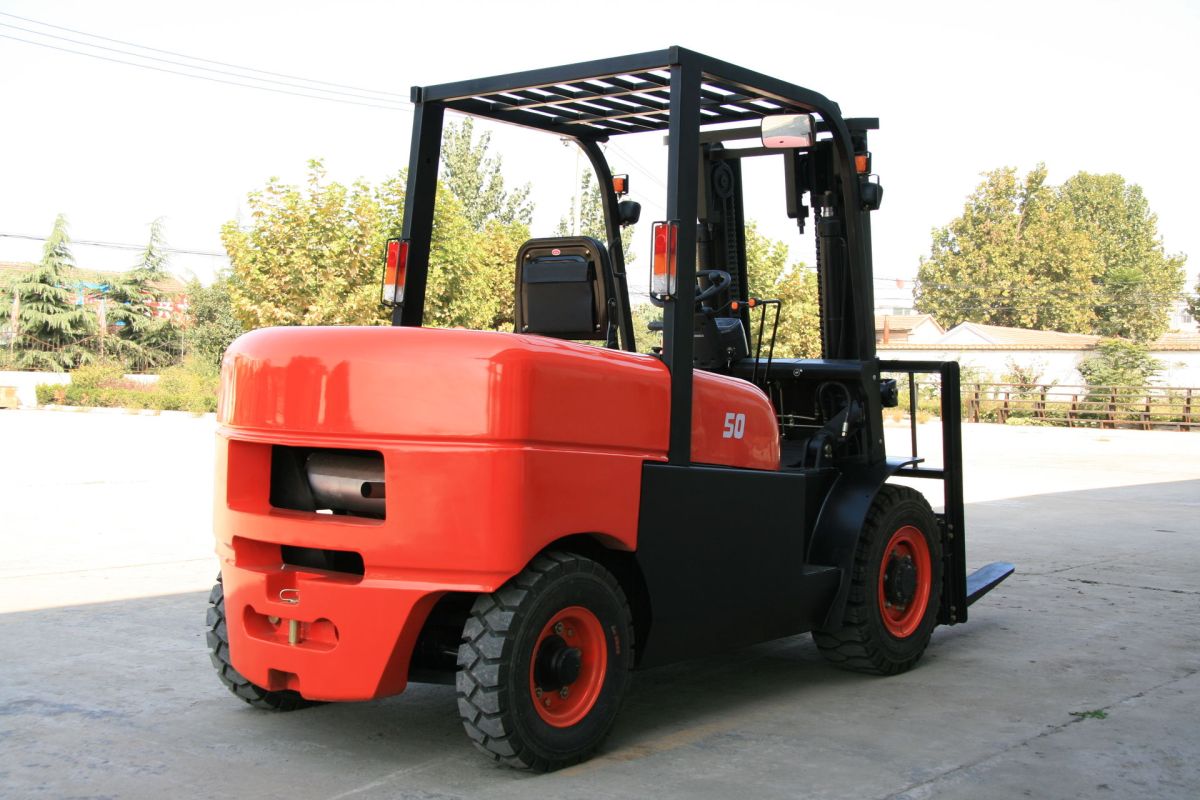

  • 20200619091933981.JPG
