SEM655D
Rated Load: 5000kg
Bucket Capacity:2.7~4.5m³
Weight: 16800kg

  • Features:


    1、 Optimizing the shape of the bucket makes it easy to pick up material, achieving higher fill factors and less spillage.

    2、 It adopts Weichai engine and perfectly matched to the transmission chain and hydraulic system, which features high power reserve, high torque, strong power, low fuel consumption, high quality, low emission and high reliability.

    3、 A/C with big cooling capacity, adding air from back and bottom of machine for all-round effect

    4、 Stronger frame design for heavy duty, makes the loader’s usage life longer.

    5、 The engine hood and heat dissipation hood adopt the large opening design to provide larger space for maintenance.

    6、 Optional multiple attachments, including: multiple buckets, pallet fork, handing arm, grapple and snow blade greatly expands the applications of the wheel loader.




  • Specification

    Main Specifications
    Rated Loadkg5000
    Operating Weight with Standard Bucketkg16800
    Bucket Capacitym³2.7-4.5
    Wheel Basemm3200
    Overall Dimensionmm8085*2963*3463
    Engine
    Model
    		Weichai WD10G
    Rated PowerkW162
    Rated Speedr/min2000
    DisplacementL9.726
    Operating Specifications
    Breakout ForcekN168
    Dump Clearancemm3058
    Articulated Angle°38±1 °
    Implement Hydraulic
    Implement System Type
    		Twin pump flow merging hydraulic system
    Boom Raise Times5.13
    Hydraulic Cycle Times9.5
    System Presure SettingMPa17
    Transmission
    Transmission Type
    		Countershaft power shift
    Transmission Gears
    		F4/R4
    Torque Converter Type
    		Sigle stage 3 elements
    Maker & Type
    		SEM TR200
    Forward I/ Reverse Ikm/h7.8/7.8
    Forward II/ Reverse IIkm/h15/15
    Forward III/ Reverse IIIkm/h22/22
    Forward IV/ Reverse IVkm/h39/39
    Brake System
    Service Brake
    		Dry & caliper, air to oil control
    Parking Brake
    		Drum type shoe brake, spring applied & oil released
    Steering System
    System Type
    		Flow amplifying
    Steering Pump Type
    		Gear pump
    System Presure SettingMpa16
    Steering Angle (L/R)°38±1 °
    Axle
    Main Drive Type
    		Spiral bevel gear, single stage
    Final Drive Reduction Type
    		Planetary type, singe stage
    Rear - Oscillating +/-°±11 °
    Tires
    Size
    		23.5-25
    type
    		Bias
    Layer
    		16
    Textured Type
    		L3/E3

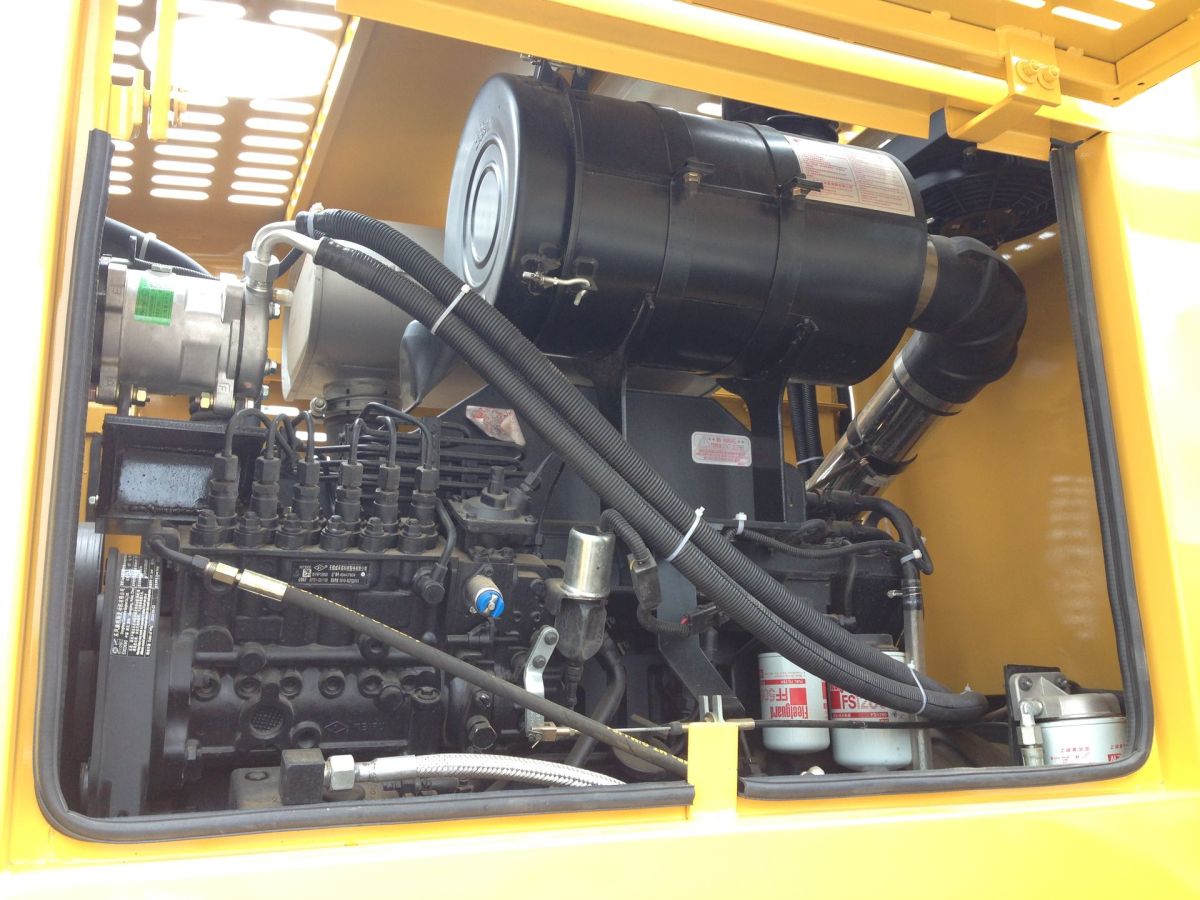

  • 20200622153457811.JPG@!w1200

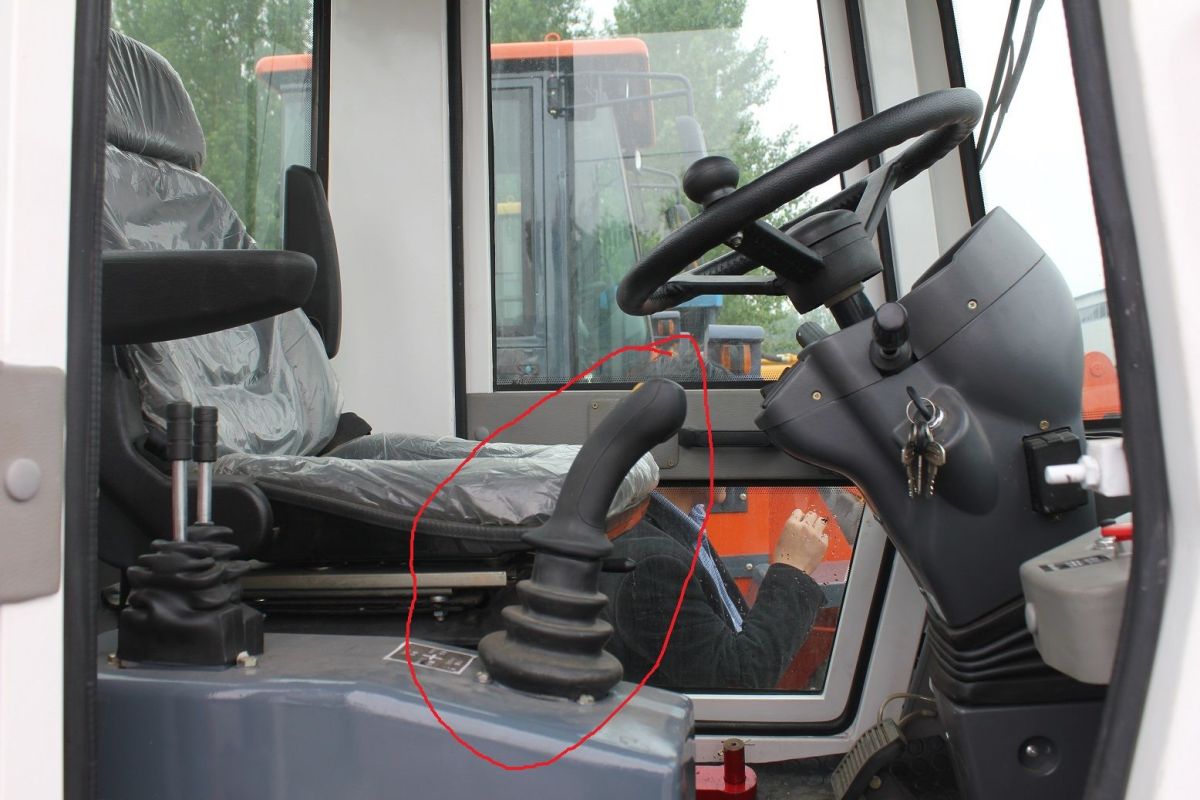

    20200622153456461.jpg@!w1200

    20200622135614166.JPG@!w1200

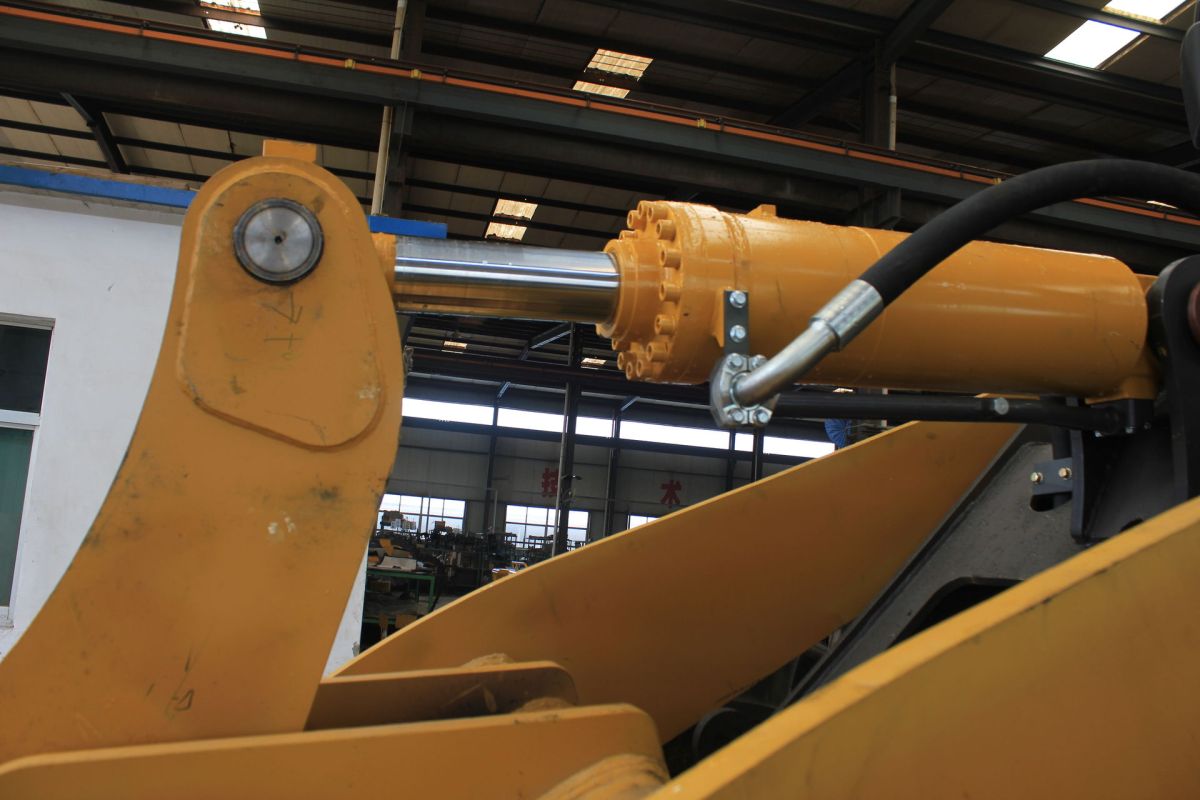

    20200622135613696.JPG@!w1200

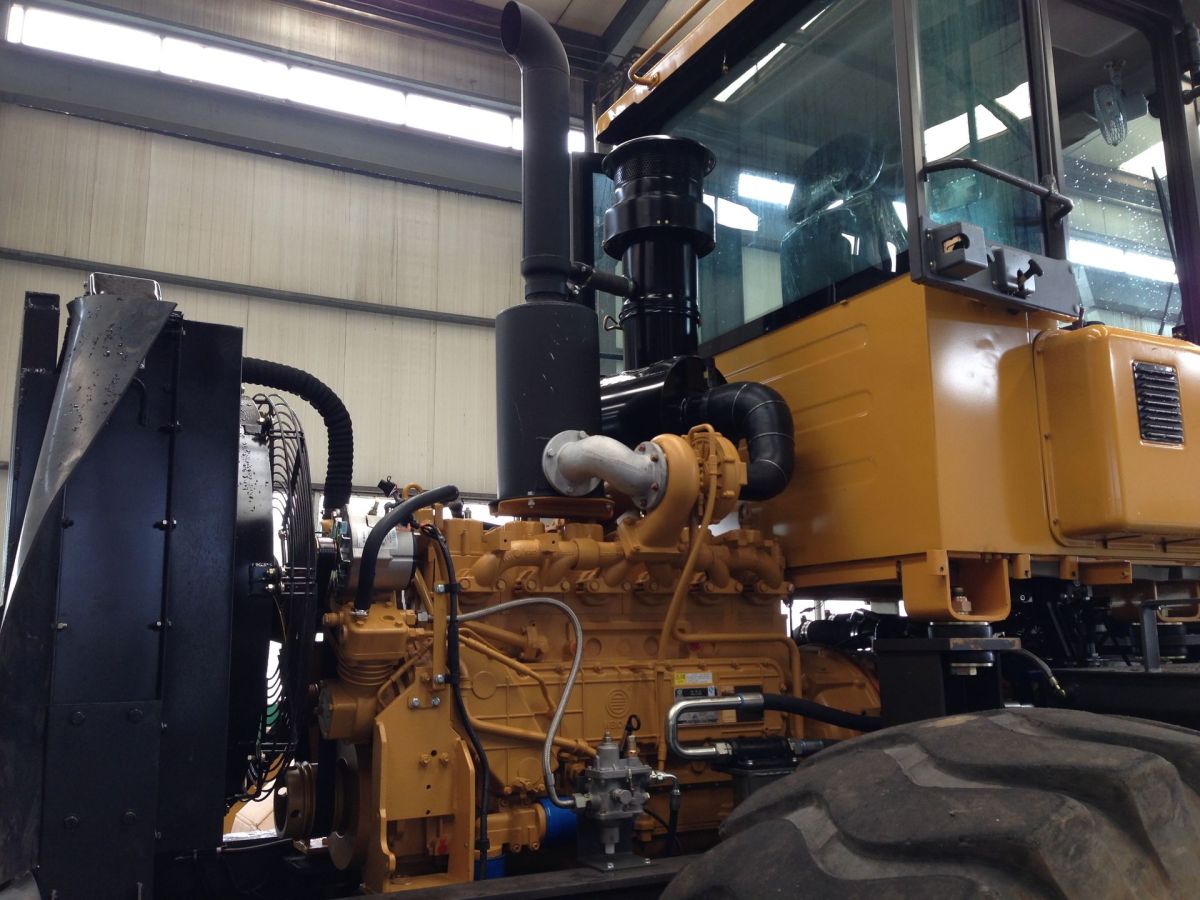

    20200622135927848.JPG@!w1200
