XCMG ZL50GN
Rated Load: 5000kg
Bucket Capacity:2.5~4.5m³
Weight: 17500±300kg

  • Features:



    1、 Optimizing the shape of the bucket makes it easy to pick up material, achieving higher fill factors and less spillage.

    2、 It adopts Weichai engine and perfectly matched to the transmission chain and hydraulic system, which features high power reserve, high torque, strong power, low fuel consumption, high quality, low emission and high reliability.

    3、 A/C with big cooling capacity, adding air from back and bottom of machine for all-round effect

    4、 Stronger frame design for heavy duty, makes the loader’s usage life longer.

    5、 The engine hood and heat dissipation hood adopt the large opening design to provide larger space for maintenance.

    6、 Optional multiple attachments, including: multiple buckets, pallet fork, handing arm, grapple and snow blade greatly expands the applications of the wheel loader.


  • Specification

    ItemUnitSpecification
    Rated operating loadkg5000
    Bucket capacitym³2.5~4.5
    Machine weightkg17500±300
    Dump clearance at maximum liftmm3100~3780
    Reach at maximum liftmm1100~1220
    Wheel basemm3300
    Treadmm2250
    Max.breakout forcekN175±5
    Hydraulic cycle time-raises6
    Total hydraulic cycle times10.5
    Min. turning radius over tyresmm5925±50
    Articulation angle°38
    Gradeability°30
    Tyre size
    		23.5-25-16PR
    Overall machine dimension L×W×H
    		8225×3016×3515
    Model
    		WD10G220E21
    Rated PowerKw162
    Travel speedⅠ-gear(F/R)km/h13/17
    Ⅱ-gear(F)km/h41



  • 20200622153456461.jpg


    20200622135906891.JPG@!w1200

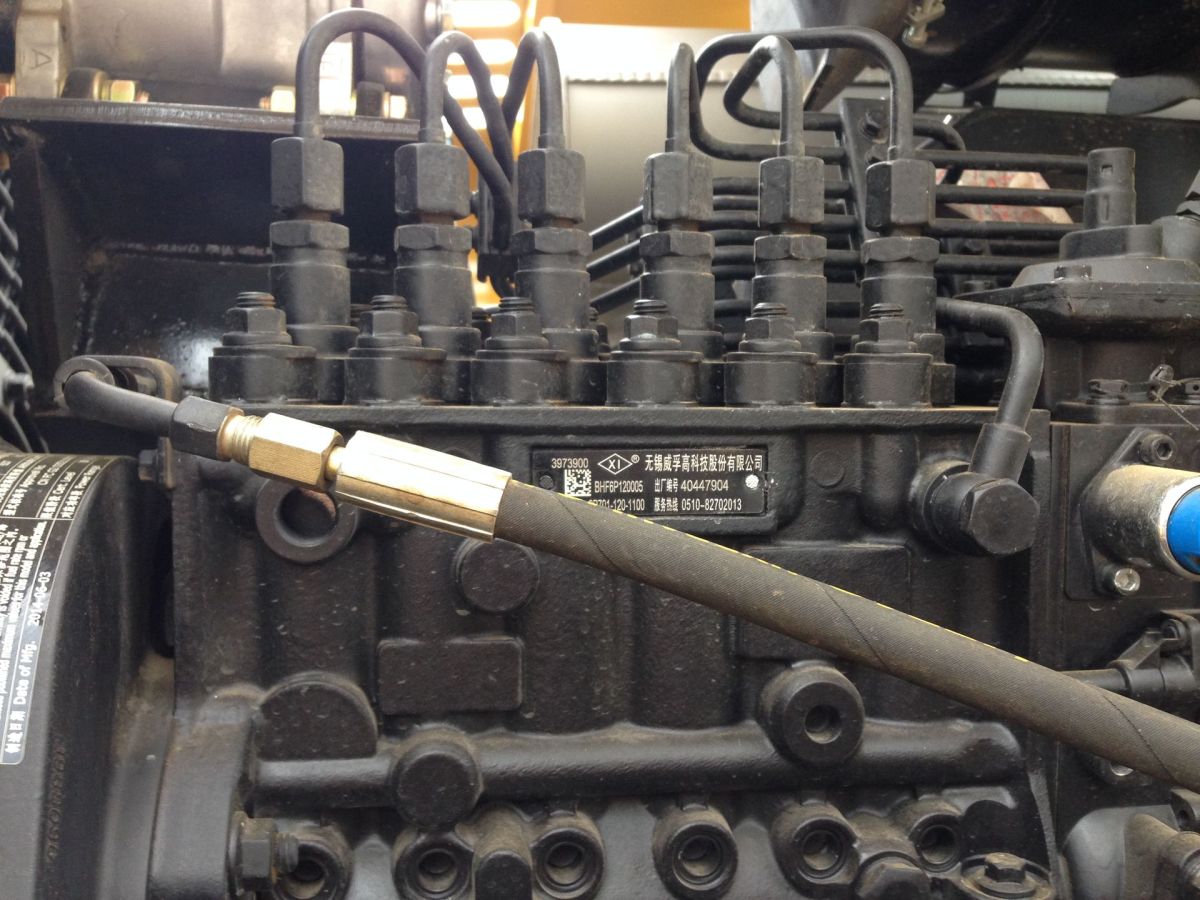

    20200622135828943.JPG@!w1200

    20200622135614166.JPG@!w1200
