SEM660D
Rated load: 6000kg
Bucket capacity: 3.3~5.5m³
weight: 20000kg

  • Features:

    1.Stronger frame design for heavy duty, which makes the loader’s usage life longer.

    2.It is fixed with Weichai 240hp engine, which features high power reserve, high torque, strong power, low fuel consumption, high quality, low emission and high reliability.

    3.ZL60G gearbox is adopted with front 4 and rear 4 gear positions to render better transmission efficiency and larger transmission ratio of forward positions 1 and 2 owing to the one additional position, and its comprehensive efficiency is increased by over 8%。

    4.The new generation cab is adopted with space increased by 15% to enhance safety and comfort. The attractive curved front windshield provides a broad view

    5.The engine hood and heat dissipation hood adopt the large opening design to provide larger space for maintenance.

    6.Optional multiple attachments, including: multiple buckets, pallet fork, handing arm, grapple and snow blade greatly expands the applications of the wheel loader.




  • Specification

    Main Specifications
    Rated Loadkg6000
    Operating Weight with Standard Bucketkg20000
    Bucket Capacitym³3.3-5.5
    Wheel Basemm3350
    Overall Dimensionmm8414*3370*3458
    Engine
    Model
    		WD10G240
    Rated PowerkW178
    Rated Speedr/min2000
    DisplacementL9.726
    Operating Specifications
    Breakout ForcekN183
    Dump Clearancemm3048
    Articulated Angle°38±1 °
    Implement Hydraulic
    Implement System Type
    		Single load sensing flow sharing system
    Boom Raise Times5.3
    Hydraulic Cycle Times9.7
    System Presure SettingMPa18
    Transmission
    Transmission Type
    		Countershat, power shift
    Transmission Gears
    		F4/R4
    Torque Converter Type
    		Sigle stage 3 elements
    Maker & Type
    		TR200
    Forward I/ Reverse Ikm/h7.4/7.4
    Forward II/ Reverse IIkm/h14/14
    Forward III/ Reverse IIIkm/h22/22
    Forward IV/ Reverse IVkm/h38/38
    Brake System
    Service Brake
    		Dry & caliper, air to oil control
    Parking Brake
    		Drum type shoe brake, spring applied & oil released
    Steering System
    System Type
    		Flow amplifying
    Steering Pump Type
    		Piston pump
    System Presure SettingMpa18
    Steering Angle (L/R)°38±1 °
    Axle
    Main Drive Type
    		Spiral bevel gear, single stage
    Final Drive Reduction Type
    		Planetary type, singe stage
    Rear - Oscillating +/-°±11 °
    Tires
    Size
    		23.5-25
    type
    		Bias
    Layer
    		20
    Textured Type
    		L3/E3

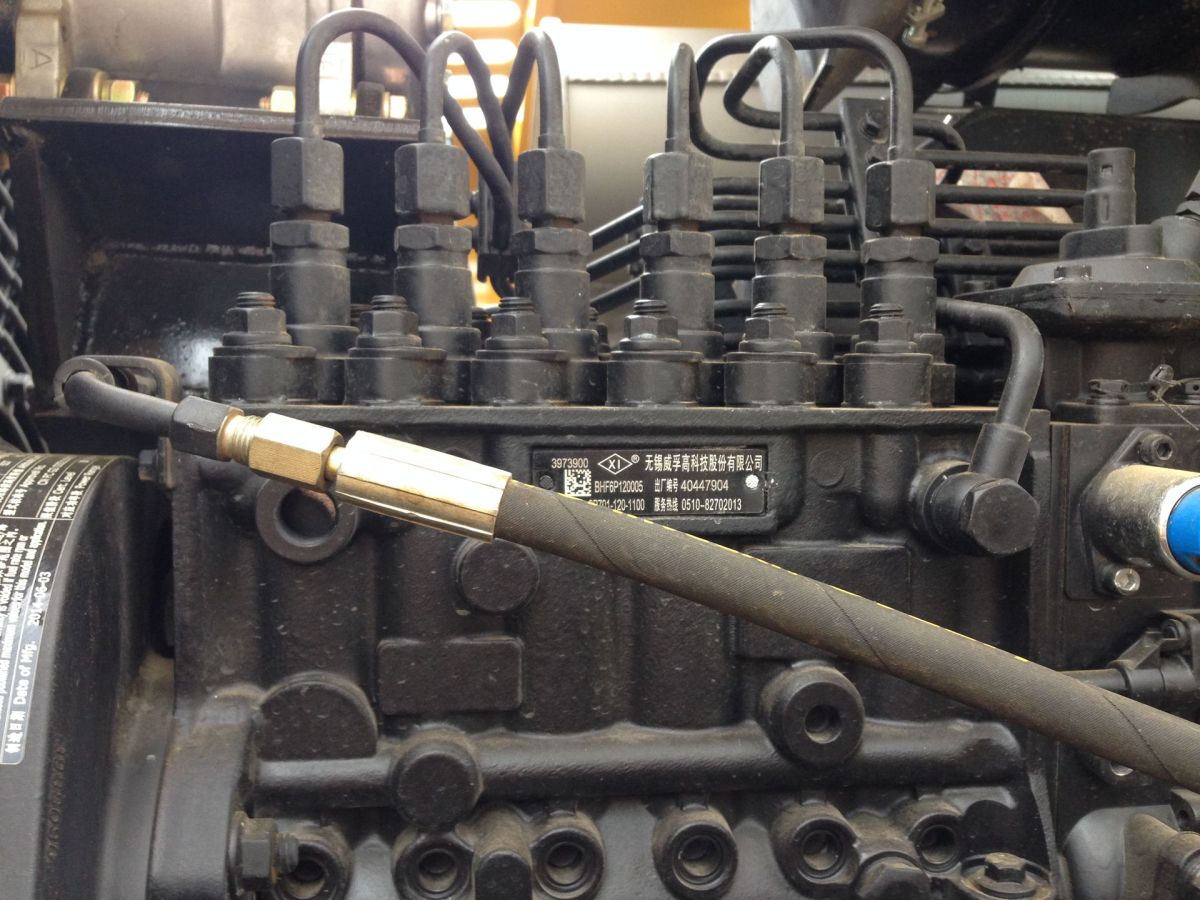

  • 20200622135828943.JPG@!w1200

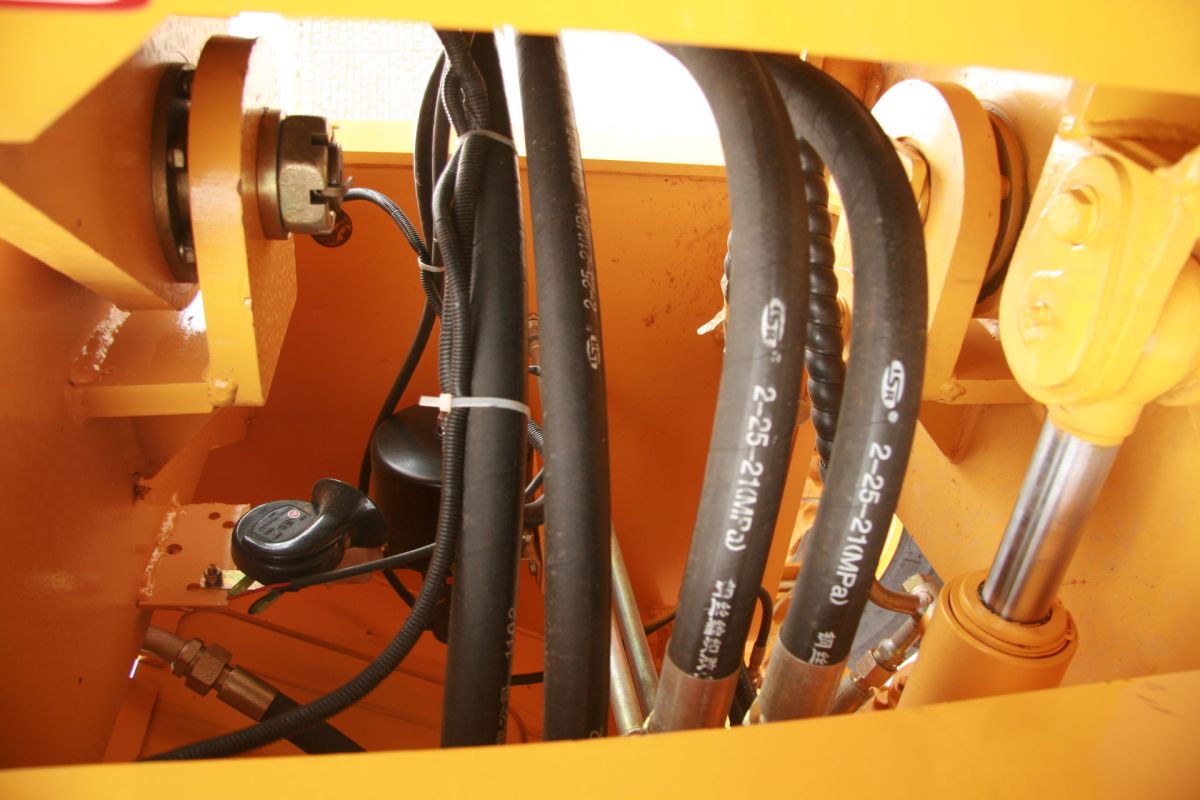

    20200622135745641.JPG@!w1200

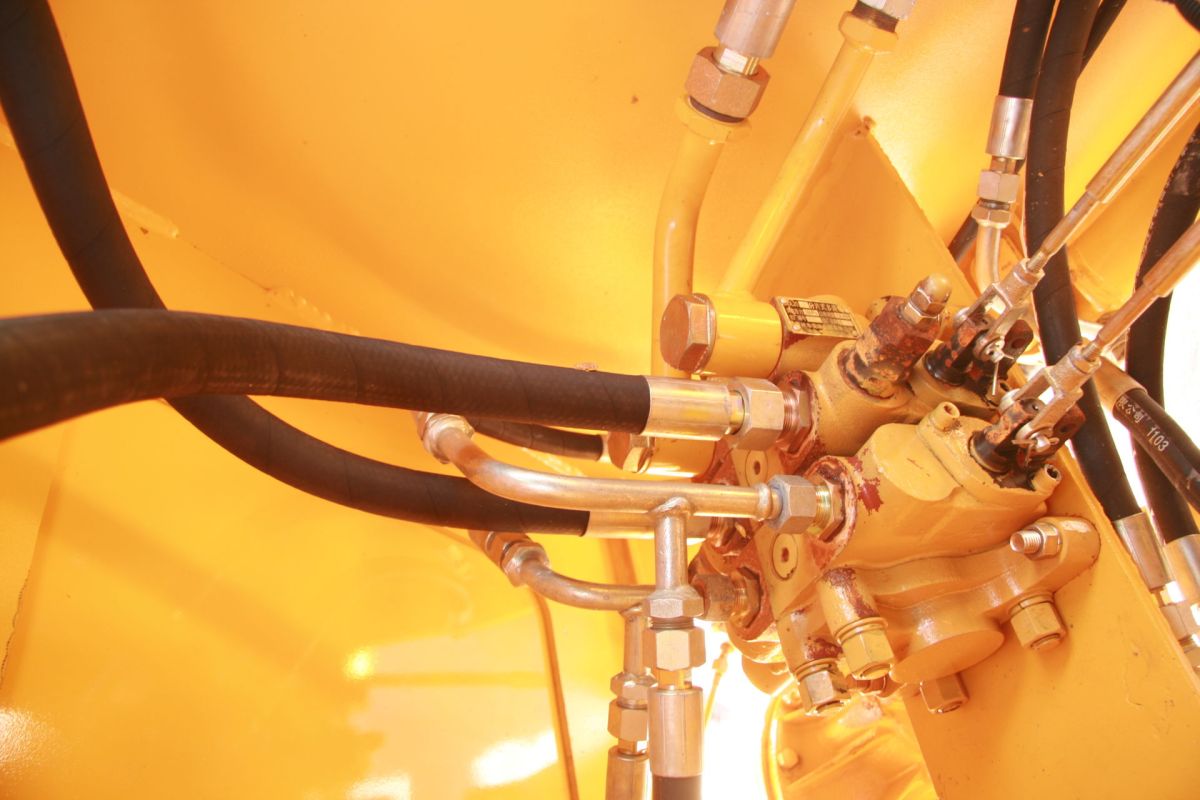

    20200622135537432.JPG@!w1200
