Wheel Loader ZL68
Rated Load: 6000kg
Bucket Capacity:3.3m³
Weight: 19800kg

  • Features:

    1.Shangchai Caterpillar tech SC11CB240.1G2B1 engine is adopted, large torque backup and strong power.

    2.Liuzhou Advance Gear Group 4W200 torque converter and fix-shaft gearbox, with ZF technology.

    3.Electro-hydraulic control, 4 forward and 3 reverse.

    4.Single lever pilot control system makes operation easy and comfortable.

    5.Strengthened axles own large bearing capacities and high reliability.

    6.Twin pump merging hydraulic system makes lower consumption and excellent performance.

    7.With load relief valve, the flow-amplified hydraulic steering system makes operation easy and performance reliable.

    8.Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.

    9.Air over hydraulic brake system; eight caliper disc brakes.

    10.Large space articulated frame makes operation and traveling stable.

    11.Working device with automatically leveling ability at high position.

    12.Main articulated points take sealed, lubricated, dust-proof layers, which owns good durability.

    13.Integral, luxury instrument board.

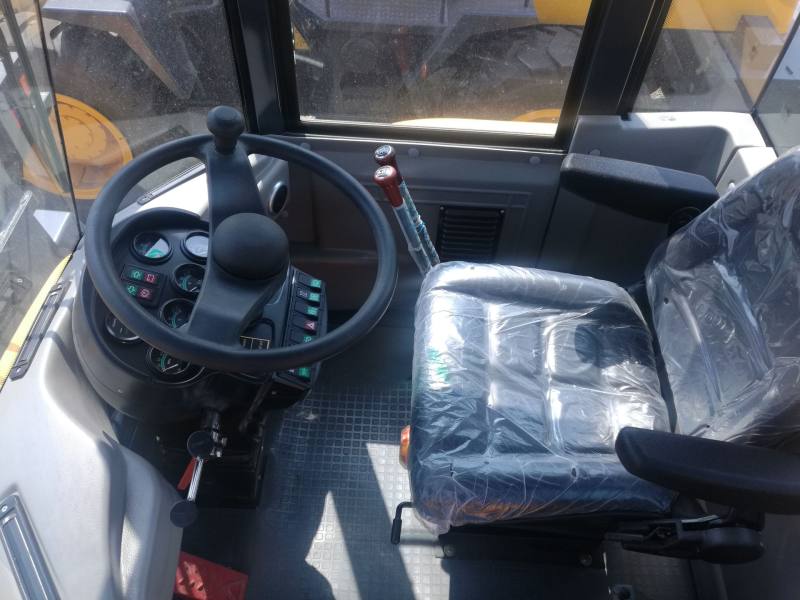

    14.New, luxury cabin


  • Specification

    		Brand
    		WINGS

    		Model
    		ZL68
    PerformanceLoader Lifing Capacitykg6000
    Operating Weightkg19800
    Rated Bucket Capacitym³3.3
    Max. Tractive Forcekn158
    Max. Breakout Forcekn204
    Max. Grade Ability°30°
    Max. Dump Heightmm3350
    Max. Dump Reachmm1255
    Overall Dimension(L×W×H)mm8250×3100×3400
    Min. Turning Radiusmm6500
    EngineModelmmWeichai Steyr WD10G240E21
    TypemmInline,Water Cooling Dry Cylinder Injection
    Cylinder-Inner Diameter*Strokemm6-126×130
    Rated Powerkw175 (2200r/min)
    Max. Torquen.m843
    Min. Fuel-consume ratiog/kw.h≤220
    Transmission
    System    		Torque Converter
    		YJ375
    Gearbox Mode
    		Power Shift Normally Engaged Straight Gear
    Gears
    		4 Forward Shift 4 Reverse Shift
    Max. Speedkm/h38
    Drive AxlesWheel Basemm3350
    Wheel Treadmm2250
    Ground Clearancemm450
    Hydraulic
    System    		System Working Pressurempa18
    Boom Lifting Times6.15±0.25
    Total Times10.65±0.5
    Fuel Tank Capacityl300
    Self-Levelling
    		Yes
    Brake
    System    		Service Brake
    		Air Over Hydraulic Disc Brake On 4 Wheels
    Parking Brake
    		Manual Parking Brake
    TyreTyre Model
    		26.5-25
    Front Tyre Pressurempa0.4
    Rear Tyre Pressurempa0.35
