Skid Steer Loader JS70
Operation Load: 1050KG
Bucket Capacity: 0.5m³
Rated power:55kw

  • Compact Design


    Wings JS series skid steer loader adopts compact design, the chassis width is smaller, so it is smarter to work in narrow space and the best choice for small space operations.

    All control uses manual or pilot control system, which is sensitive in control and quick in response.



    Reliable Hydraulic System and Engine

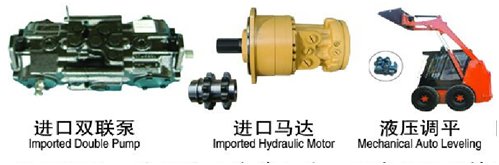

    Wings Skid Steer Loader adopts imported European and American hydraulic components. For example, the main pump adopts the German Rexroth high-pressure plunger variable pump, and the walking motor is the single-speed and two-speed motors produced by Rexroth.

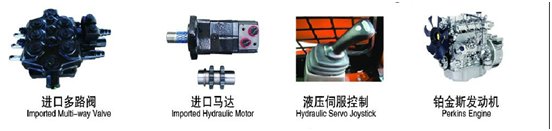

    The engine is selected from internationally renowned brands. And Key hydraulics parts such as gear pumps, multi-way valves, pilot valves, and leveling valves are imported from European and American products

    20200807100233490.png@!w1200

    20200807100242557.png@!w1200


    Strong Working Arm and Comfortable cab


    Our Skid Steer Loader is equipped with a new type of plate welding working arm, which has high carrying capacity and overall rigidity, reliability and durability.

    The tipping cylinder can be equipped with a maximum of 100/50, and the maximum breakout force is over 3 tons.

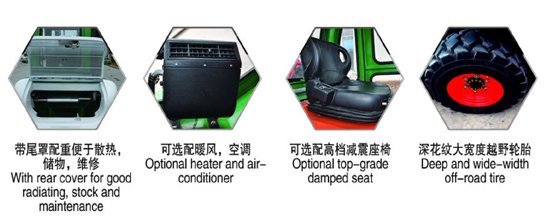

    The luxurious cab adopts blow molding interior, beautiful and comfortable.

    20200807100254726.png@!w1200


    Easier to Maintenance


    The pilot operating mechanism adopts the adjustable control distance designed by the company's patent to adapt to the driving requirements of different people.

    The rear radiator adopts a rotating structure, which greatly improves the maintainability of the machine.

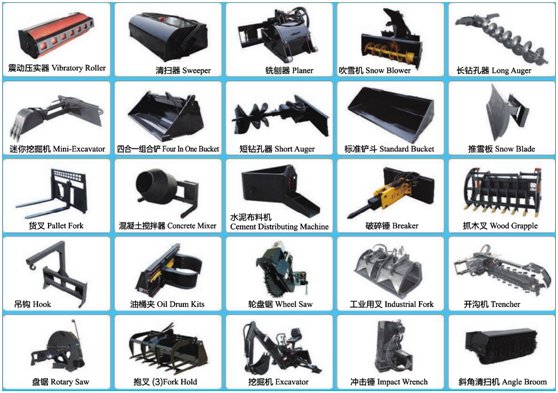

    High Flow to match different attachments


    Our JS series skid loader provides high-flow accessory output.

    The standard flow rate reaches 80L/min, and the high flow system can output up to 140L/min.

    It can almost meet all attachment requirements.

    20200807100303669.png@!w1200

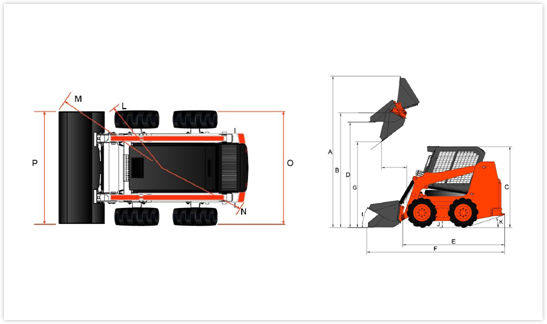

  • Specification
    1Model
    		JS75
    2Operating loadKG1050
    3Max. speedkm/h12
    4Rated fluxL/min75
    5High flow fluxL/min120
    6Tire(track) model
    		12-16.5
    7Rated powerKw55
    8Fuel tank capacity L75
    9Self weight bucketKg3500
    10Bucket capacityM³0.5
    11Overall operating heightmm4070
    12Height to bucket hinge pinmm3280
    13Height to top of cabmm2160
    14Height to bottom of level bucketmm3140
    15Without bucket lengthmm2880
    16Overall length with bucketmm3580
    17Dumping angle at maximum height°40
    18Dumping heightmm2500
    19Dumping reach mm700
    20Rollback of bucket on ground°30
    21Rollback of bucket at full height °104
    22Wheelbasemm1080
    23Ground clearancemm205
    24Angle of departure°20
    25Front turning radius without bucketmm1250
    26Front turning radiusmm2112
    27Rear turning radiusmm1774
    28Rear axle to bumpermm1082
    29Tread widthmm1500
    30Widthmm1880
    31Bucket widthmm1880
