Skid Steer Loader JS100

Operation Load: 1200KG
Bucket Capacity: 0.55m³
Rated power: 74.9kw

Strong driving force

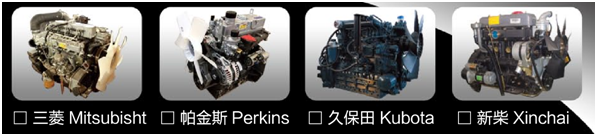

Wings skid loader adopts famous brand engine, such as Xinchai, Perkins, Mitsubishi, Kubota and Deutz, which ensure that your machine is capable of working in a variety of environments.

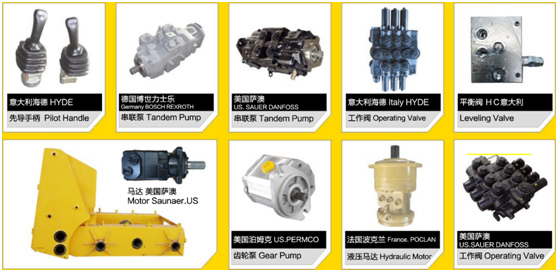

Perfect hydraulic system

All hydraulic parts adopt importuned famous brand.
Pilot handle is Italy HYDE brand.
Tandem Pump is Germany BOSCH REXROTH or US.SAUER DANFOSS.
Operating vale is Italy HYDE
Leveling Vale is Italy HC
Motor is US. SAUER
Gear pump is US.PERMCO
Hydraulic motor is France POCLAN
Operating valve is US.SAUER DANFOSS

Durable structure parts.

All structural parts are design and manufacture by ourselves which are beautiful and durable. Hydraulic oil tank, fuel tank and chassis bleed as one, which maximized the performance of the machine and makes the working arm and body to achieve most perfect combination.

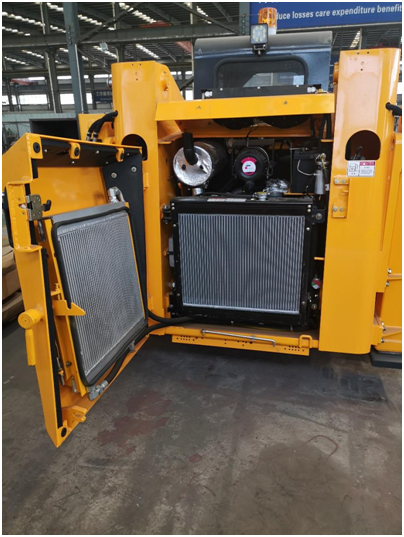

Convenient Maintenance

When you maintenance our skid loader, no need to raise the actuating arm, just open the back cover and upper cover, you can complete all inspection and filling working, including maintenance the engine filter and battery.

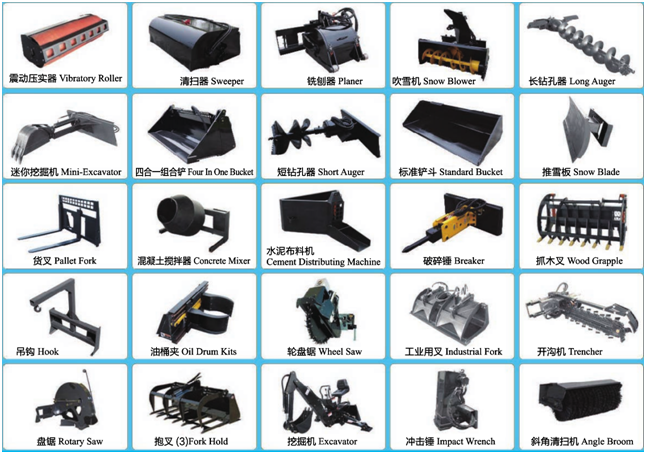

Multiple Attachments

In order to make work relax and easier, there are multiple attachments to choose according to your different working environment and construction requirements.

Specification
1.1	Brand		WINGS
1.2	Model		JS100
1.3	Rated operating capacity	KG	1200
1.4	Tipping load	KG	2400
1.5	Bucket capacity	m3	0.55
1.6	Operating weight	KG	3600
1.7	Max. travel speed	km/h	12
1.8	Hydraulic pump flow	L/min	88/122
1.9	Fuel tank capacity	L	90
1.1	Tires		12-16.5NHS
1.11	Overall dimensions	mm	370018802160
Dimensions
2.1	Height at maximum extension	mm	4070
2.2	Height to bucket hinge pin	mm	3150
2.3	Width with bucket	mm	2030
2.4	Track width	mm	1500
2.5	Wheelbase	mm	1020
2.6	Ground clearance	mm	205
2.7	Dump angle	°	40°
2.8	Dumping height	mm	2450
2.10	Rollback at ground	°	26
2.11	Angle of departure	°	20
Engine
3.1	Brand		WEICHAI
3.2	Model		WP4.1G
3.3	Net power	KW/rpm	74.9/2200
3.4	Type		4 Cylinder in-line, Water cooled, 4 stroke
3.5	Displacement	L	4.1
Standard
4.1	Luxurious enclosed cab
4.2	Hydraulic joystick controls
4.3	Standard bucket
4.4	Preheating assist system for extreme cold weather
4.5	Auxiliary hydraulic couplers
