skid steer loader, JS45 Skid steer loader

WINGS





You may like

JS45

Operation Load: 700KG
Bucket Capacity: 0.4m³
Rated power: 36.7kw

Strong driving force

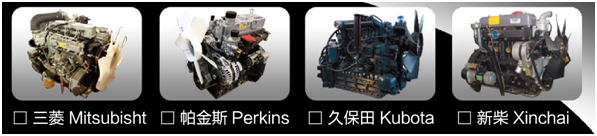

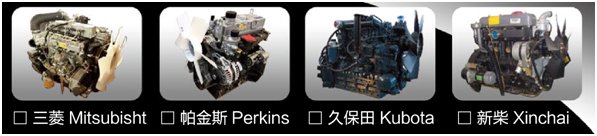

Wings skid loader adopts famous brand engine, such as Xinchai, Perkins, Mitsubishi, Kubota and Deutz, which ensure that your machine is capable of working in a variety of environments.

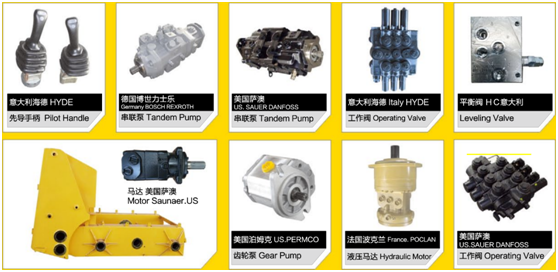

Perfect hydraulic system

All hydraulic parts adopt importuned famous brand.
Pilot handle is Italy HYDE brand.
Tandem Pump is Germany BOSCH REXROTH or US.SAUER DANFOSS.
Operating vale is Italy HYDE
Leveling Vale is Italy HC
Motor is US. SAUER
Gear pump is US.PERMCO
Hydraulic motor is France POCLAN
Operating valve is US.SAUER DANFOSS

Durable structure parts.

All structural parts are design and manufacture by ourselves which are beautiful and durable. Hydraulic oil tank, fuel tank and chassis bleed as one, which maximized the performance of the machine and makes the working arm and body to achieve most perfect combination.

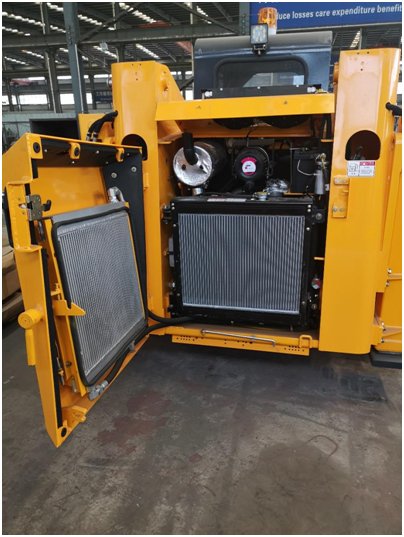

Convenient Maintenance

When you maintenance our skid loader, no need to raise the actuating arm, just open the back cover and upper cover, you can complete all inspection and filling working, including maintenance the engine filter and battery.

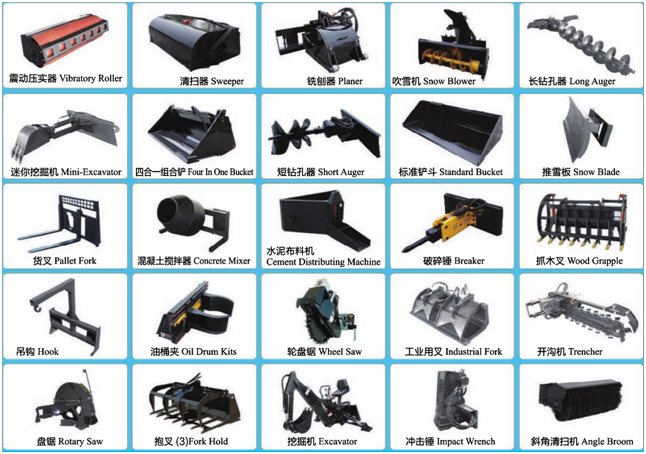

Multiple Attachments

In order to make work relax and easier, there are multiple attachments to choose according to your different working environment and construction requirements.

Specification

1	Model		JS45
2	Operating load	kg	700
3	Max. speed	km/h	12
4	Rated flux	L/min	62.5
5	High flow flux	L/min	/
6	Tire(track) model		10-16.5
7	Rated power	kw	36.7
8	Fuel tank capacity	L	65
9	Self weight bucket	kg	2700
10	Bucket capacity	M³	0.4
11	Overall operating height	mm	3980
12	Height to bucket hinge pin	mm	3080
13	Height to top of cab	mm	2140
14	Height to bottom of level bucket	mm	2913
15	Without bucket length	mm	2640
16	Overall length with bucket	mm	3420
17	Dumping angle at maximum height	°	40
18	Dumping height	mm	2380
19	Dumping reach	mm	710
20	Rollback of bucket on ground	°	30
21	Rollback of bucket at full height	°	104
22	Wheelbase	mm	1450
23	Ground clearance	mm	180
24	Angle of departure	°	20
25	Front turning radius without bucket	mm	1168
26	Front turning radius	mm	1958
27	Rear turning radius	mm	1630
28	Rear axle to bumper	mm	1108
29	Tread width	mm	1450
30	Width	mm	1720
31	Bucket width	mm	1740
