Compact Design
Wings JS series skid steer loader adopts compact design, the chassis width is smaller, so it is smarter to work in narrow space and the best choice for small space operations.
All control uses manual or pilot control system, which is sensitive in control and quick in response.

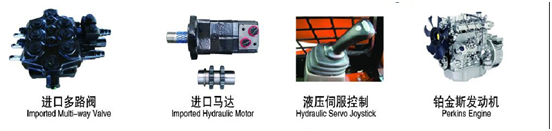

Reliable Hydraulic System and Engine

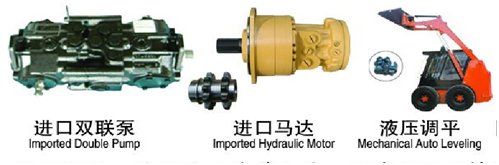

Wings Skid Steer Loader adopts imported European and American hydraulic components. For example, the main pump adopts the German Rexroth high-pressure plunger variable pump, and the walking motor is the single-speed and two-speed motors produced by Rexroth.
The engine is selected from internationally renowned brands. And Key hydraulics parts such as gear pumps, multi-way valves, pilot valves, and leveling valves are imported from European and American products
Strong Working Arm and Comfortable cab
Our Skid Steer Loader is equipped with a new type of plate welding working arm, which has high carrying capacity and overall rigidity, reliability and durability.
The tipping cylinder can be equipped with a maximum of 100/50, and the maximum breakout force is over 3 tons.

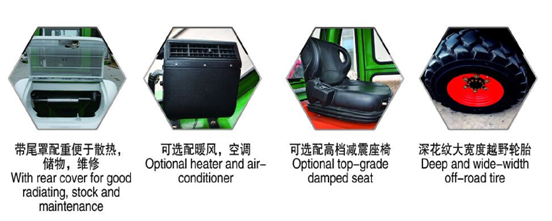

The luxurious cab adopts blow molding interior, beautiful and comfortable.
Easier to Maintenance
The pilot operating mechanism adopts the adjustable control distance designed by the company's patent to adapt to the driving requirements of different people.
The rear radiator adopts a rotating structure, which greatly improves the maintainability of the machine.

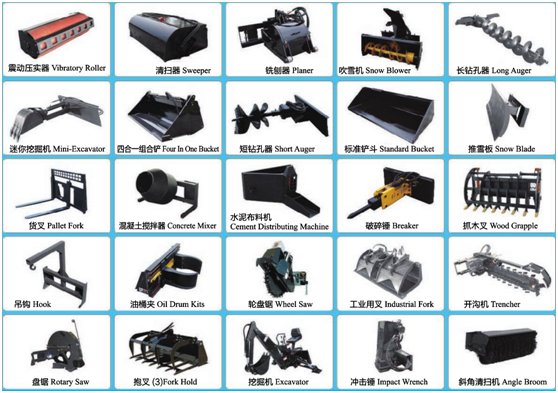

High Flow to match different attachments
Our JS series skid loader provides high-flow accessory output.
The standard flow rate reaches 80L/min, and the high flow system can output up to 140L/min.
It can almost meet all attachment requirements.
Specification | |||
1.1 | Brand | WINGS | |
1.2 | Model | JS65 | |
1.3 | Rated operating capacity | KG | 950 |
1.4 | Tipping load | KG | 1900 |
1.5 | Bucket capacity | m3 | 0.5 |
1.6 | Operating weight | KG | 3350 |
1.7 | Max. travel speed | km/h | 12 |
1.8 | Hydraulic pump flow | L/min | 75/140 |
1.9 | Fuel tank capacity | L | 80 |
1.1 | Tires | 12-16-15NHS | |
1.11 | Overall dimensions | mm | 3490*1880*2160 |

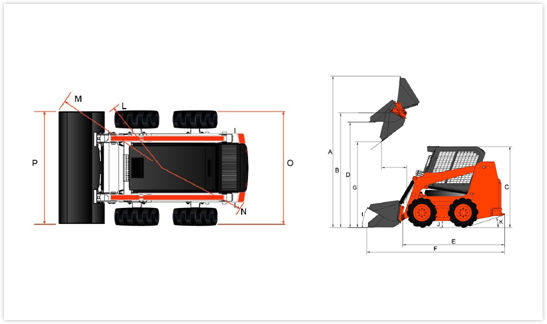

Dimensions | |||
2.1 | Height at maximum extension | mm | 4000 |
2.2 | Height to bucket hinge pin | mm | 3100 |
2.3 | Width with bucket | mm | 1880 |
2.4 | Track width | mm | 1500 |
2.5 | Wheelbase | mm | 1085 |
2.6 | Ground clearance | mm | 205 |
2.7 | Dump angle | ° | 40° |
2.8 | Dumping height | mm | 2400 |
2.9 | Maximum reach | mm | 750 |
Engine | |||
3.1 | Brand | Xinchai | |
3.2 | Model | 498T | |
3.3 | Net power | KW/rpm | 55/2500 |
3.4 | Type | 4 Cylinder in-line, Water cooled, 4 stroke | |
3.5 | Displacement | L | 3.17 |
Standard | |||
4.1 | Luxurious enclosed cab | ||
4.2 | Hydraulic joystick controls | ||
4.3 | Standard bucket | ||
4.4 | Auxiliary hydraulic couplers |
