Skid Steer Loader Mini WS300
Operation Load: 300KG
Bucket Capacity: 0.15m³
Max. Load: 325KG

  • Features:

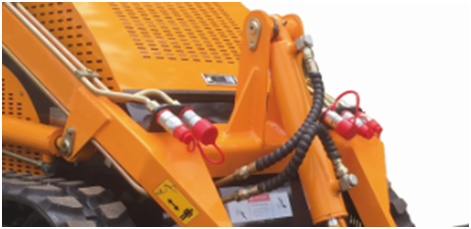

         This mini skid loader can equipped with 2 output, so you can match different attachments, such as trencher, drill, Backhoe arm, digger, hammer, rotary plow etc. It can work and walk at the same time.

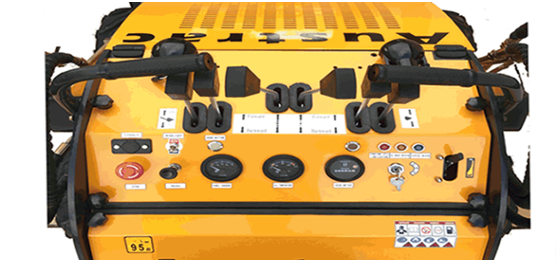

         Operation Board



  • Specification

    EngineBriggs & StrattonRated power（HP）23HP
    Rated Speed（rpm）3600
    Noise   (Db)less95
    System Flow21L/min
    Hydraulic SystemSystem Pressure（Mpa）17
    Working time（s）raisedumping
    4.271.343.31
    Main   Performance Parameters
    		MetricMil
    Rated Load300   kg441   lb
    Bucket Capacity0.15   m³5.33   ft3
    Max.   Lifting capacity375   kg827   lb
    Drving   speed0~6   km./h0-3.4   mile/h
    Operating   WeightSolid   tyre model980   kg2160   lb
    Ordinary   tyre model940   kg2072lb
    Grass land model900   kg1984   lb
    Tracked model980   kg2160   lb
    Tyre sizeSolid   Tyre16*6-8
    Construction   & Grass tyre20-10-10
    RimSolid tyre rim4.33R-8
    Construction & grass tyre rim20-10-10
    Delivery   dimension (tyre model)1600*1180*1300
    Delivery   dimension (track model)1600*1100*1300
    Length(include   bucket)1900
    Length（include bucket and step）2100
    Fuel tank capacity25   L
    Oil tank capacity27   L
    Engine Displacement627   ml
    Bucket Breakout force550KgTipping   Load325kg
