WS800

Rated Load: 800kg
Bucket Capacity: 0.4m³
Weight: 2140kg

Features:

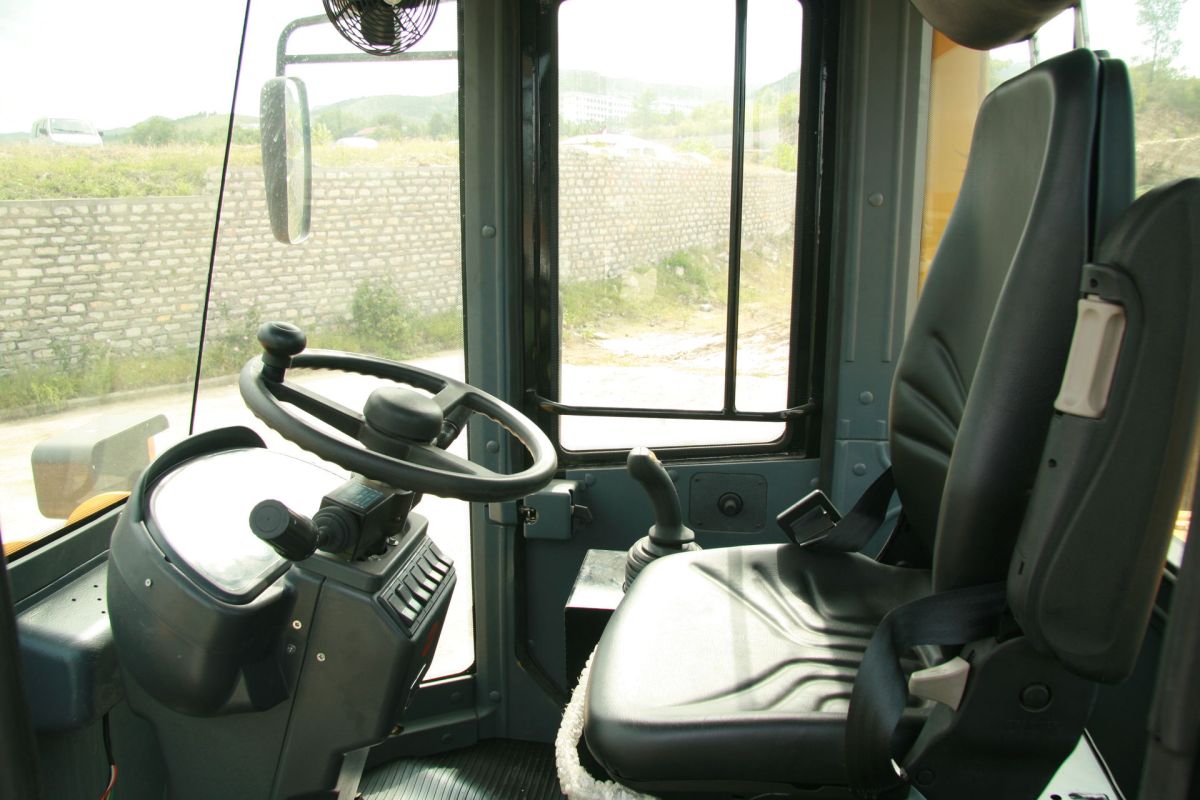

1.Luxurious Cab with luxurious seat, which can help operation working longer time without tire. Especially on the rough working road.
2.New designed cab whit a wide and better view, which ensure safety operation.
3.Adopt Heavy-duty axle to ensure the loader can suitable for rough road and heavy loading.
4.We developed new bucket design with ”Z” shape turning structure, which increase loaders’ breakout force.
5.We match Powerful engine to improve this wheel loader’s torque, and improve its work efficiency with lower oil consume.

Specification

WS800 Wheel Loader
Performance	1	Rated load	kg	800
	2	Rated bucket capacity	m³	0.4
	3	Operating weight	kg	2140
	4	Max. tractive force	KN	≥13
	5	Max. breakout force	KN	13
	6	Dumping angle	°	38
	7	Max. dumping height	mm	2300
	8	Dumping distance	mm	650
	9	Total cycle time	s	≤9s
	10	Operation type		Manual Operation
Dimension	11	Overall dimension(LWH)	mm	4700x1440x2340
	12	Wheelbase（轴距）	mm	2070
	13	Wheel tread（轮距）	mm	1120
	14	Min. Ground clearance	mm	182mm
	15	Horizontal passage radius	mm	5340mm
Engine	16	Model		Quanchai490
	17	Rated power	kw	38
	18	Optional engine		Sida490，Sida 493, Yunei 490, Huadong 490
Transmission	19	Type		Hydrostatic transmission
	20	Gear shift		3 forward shift, 2 reverse shift
	21	Max. Forward Speed	km/h	30
	22	Max. Reverse Speed	km/h	22
Steering system	23	Type	Articulated load-sensing hydraulic steering system
	24	Steering angle	°	36
	25	Min. turning radius	mm	4765mm
	26	System working pressure	Mpa	16
Brake system	27	Service brake		air over hydraulic caliper disc brake
Brake system	28	Parking brake		Manual internal expanding shoe-type
